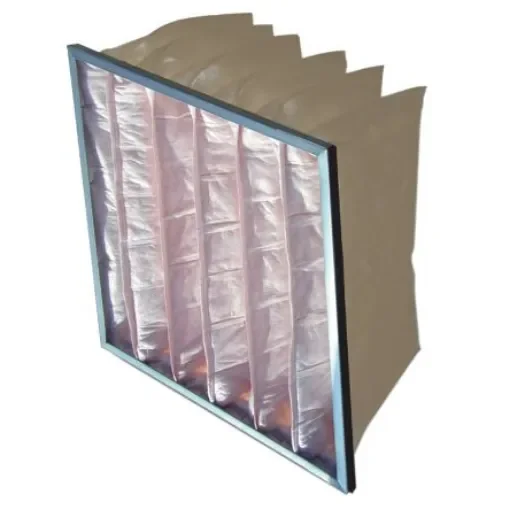

RS PRO Polypropylene Bag Filter, F5 Grade, 11 MERV Rating, 592 x 287 x 600mm - 8279655

Filter Type = Bag
Nominal Dimensions = 24 x 12 x 24in
Actual Dimensions = 592 x 287 x 600mm
Filter MERV Rating = 11
Number of Pockets = 3
Filter Grade = F5
Maximum Air Flow = 78.8m³/h
Initial Pressure Drop = 63Pa
Final Pressure Drop = 250Pa
Colour = Grey
Case Material = Galvanised Steel
Media Material = Polypropylene
Actual Depth = 600mm
Actual Width = 287mm

Eurovent certified. For reference when reading the datasheet: ; 827-9639 827-9639 = CU5-2415 ; 827-9633 827-9633 = CU5-2420 ; 827-9645 827-9645 = CU5-2424 ; 827-9649 827-9649 = CU5-1215 ; 827-9655 827-9655 = CU5-1224 ; 827-9664 827-9664 = CU5-1220. RS CU5 Ultraseal Medium Efficiency Rated Bag Filters. RS CU5 Ultraseal medium efficiency rated bag filters can be used widely in buildings such as administrative departments, hospitals and other sensitive areas. This grade of filter is also suitable for the air conditioning of offices, theatres, computer rooms and spray booths. These HVAC bag filters are manufactured by mounting the 100% polypropylene synthetic media into a galvanised steel header frame. Hydrophobic media allows great performance in damp atmospheres Rolled safety edges in the frame prevent filter material damage and are safe for installation engineers Extra built-in pre-filter layer which provides extended filter life Ultrasonically welded pockets for leak free seams Available in most sizes and pocket configurations Polypropylene filter media Triple filtration layered Totally non-toxic and non-irritant Eurovent energy rating: G>1300kWh Filter efficiency to BS EN 779:2012 is F5 (M5) Rating to ASHRAE 52.2 test standard is Merv 11
