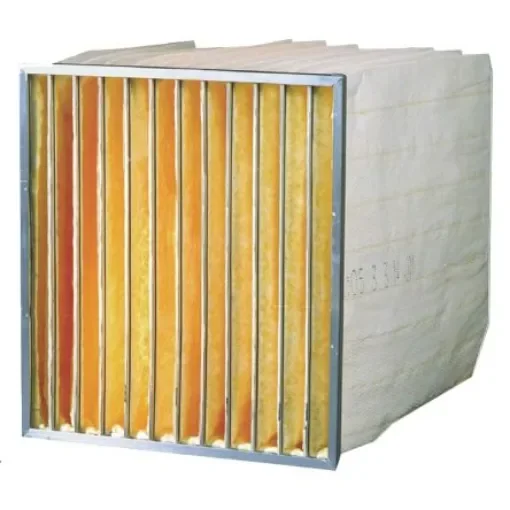

RS PRO Micro Glass Bag Filter, F8 Grade, 304 x 609 x 381mm - 8279780

Filter Type = Bag
Nominal Dimensions = 12 x 24 x 15in
Actual Dimensions = 304 x 609 x 381mm
ISO 16890 Class = ISO-1-85
Number of Pockets = 3
Filter Grade = F8
Colour = Yellow
Case Material = Galvanised Steel
Media Material = Micro Glass
Actual Depth = 381mm
Actual Height = 304mm

RS Jayflow90 Fine Efficiency Rated Glass Bag Filter. The RS Jayflow90 range of glass fibre bag filters are used widely in government buildings, hospitals and other sensitive areas. This grade of filter is effective against dust, soot and is suitable for air-conditioning in hospitals, laboratories, offices, theatres and computer rooms. RS Jayflow bag filters are manufactured by mounting the microfine glass fibre media pockets into a galvanised steel header frame and rigid steel collars. The glass fibre pockets are stitched to allow them to open fully just far enough to prevent them from inflating too far and touching adjacent pockets therefore allowing for maximum airflow. The conical shape of these pockets allows for a maximum of 12 pockets to be fitted across a width of 600mm nominal. A side gasket is applied to each filter as standard, however for the front or rear face of the frame for front of rear mounting frames you will require gasket material, please see RS ; 619-1720 619-1720. Microfine glass fibre filter media Galvanised steel header frames and collars Filter Efficiency to BS EN 779:2012 F8 MTE (Minimum Test Efficiency @ 0.4micron) 75%
