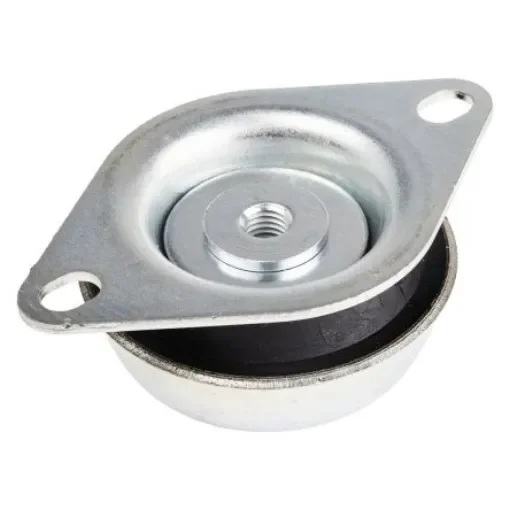

RS PRO M12 Anti Vibration Mount with 360kg Compression Load - 1623214
The RS PRO M12 Anti Vibration Mount offers superior load support and vibration isolation for various applications.
Manufacturer part number: 1623214
GTIN: 5056279075886
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Thread Size = M12
Diameter = 130mm
Foot Height = 3mm
Overall Height = 44mm
Static Load Capacity = 360kg
Material = Natural Rubber
Compression Load = 360kg
Maximum Operating Temperature = +100°C
RS PRO Anti-Vibration MountThe RS PRO M12 metal anti-vibration mount can bear 360kg at 60 shore A compression load. It is a captive flanged mount with a rubber element. It may be applied in both, shear and compression to give maximum isolation from vibrating equipment. It is designed to take the vertical load.Features and Benefits• Compact design with in-built bump and rebound control feature to control the movement of equipment in transit • Compression design and metal cap effectively eliminate airborne noise as compared to spring mountings • Dome-shaped metal cap protects the elastomer against splashes of oil and fuel contamination • Low height captive mounting capable of taking 40kg to 5000kg load • Thick base flange metal for additional strengthApplications• Blowers • Centrifugal fans • Compressors • Electronic control panels • Marine engines (no thrust) and gearboxes • Pumps • Railway equipment compartments • Static and mobile generator sets
