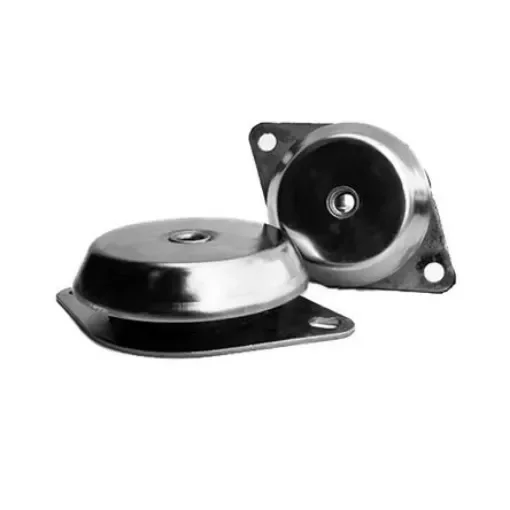

RS PRO M10 Anti Vibration Mount, Male Buffer Foot - 1893286

RS PRO Pedestal MountThe RS PRO pedestal mount has a thread size of M10 and dimensions of 92mm x 45mm (diameter x height). This is a captive flanged mount with a rubber element designed to take vertical load applied in both shear and compression to give maximum isolation from vibrating equipment. It has a rubber hardness of 60ShoreA.Features and Benefits• Compression deflection: 4mm, 600kg • Compact design with in-built bump and rebound control feature controls movement of equipment in transit • Dome shaped metal cap protects the elastomer against splashes of oil and fuel contamination • Compression design and metal cap effectively eliminate airborne noise when compared to spring mountings • Thick base flange metal gives added strength • Low height captive mounting capable of taking loads from 40kg to 5000kgApplications• Static and mobile generators • Pumps, compressors, centrifugal fans, and blowers • Railway equipment compartments • Marine engines (no thrust) and gearboxes • Electronic control panelsCertifications• ANSI/ESD S20.20: 2014 • BS EN 61340-5-1: 2007
