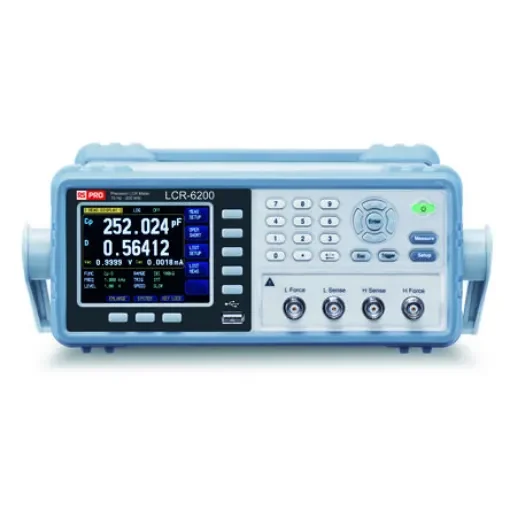

RS PRO LCR-6200 Bench LCR Meter 9.9mF, 99 MO, 9999H - 1176715

Maximum Capacitance Measurement = 9.9mF
Maximum Resistance Measurement = 99 MO
Maximum Inductance Measurement = 9999H
Bench/Handheld = Bench
Display Type = LCD
Power Source = Mains
Dimensions = 265 x 312 x 107mm
Weight = 3kg
Height = 107mm
Length = 265mm
Model Number p = LCR-6200mm

Safety instructions, power cord, test fixture LCR-06A, CD (user manual, PC software). RS Pro LCR-6000 Series offers a choice of 5 models with different test frequency: 2 kHz, LCR-6002, ; 117-6718 117-6718 ; 20 kHz, LCR-6020, ; 117-6717 117-6717 ; 100 kHz, LCR-6100, ; 117-6716 117-6716 ; 200 kHz, LCR-6200, ; 117-6715 117-6715 ; 300 kHz, LCR-6300, ; 117-6714 117-6714 ). RS Pro LCR-6000 Series High Precision LCR Meter. RS Pro LCR-6000 Series meters feature a 0.05% basic accuracy, compact size (2U half-rack) and large (3.5 inch) colour LCD. Measurement efficiency is increased by the simultaneous display on screen of not only setting criteria and measured results but also two additional monitoring parameters. The measurement results include a PASS/FAIL display for fast validation. Operators can freely change frequency, within the range of the model, so can save the time and hassle of repeating zero operations. Also included are Safety instructions, power cord, test fixture LCR-06A, and CD. (user manual, PC software). Features and Benefits:. 3.5 inch colour LCD Consecutive Test Frequency Basic accuracy 0.05% Measuring speed up to maximum 25 ms Full frequency range or spot OPEN/SHORT 16 major/secondary parameter measurement combinations and 2 additional monitoring parameters ( maximum 4 different parameters can be shown simultaneously) DCR measurement and internal DC bias voltage (±2.5 V) Auto Level Control (ALC) function BIN function provides 9BIN and 1AUX 10 points listed test function to select different frequency, voltage and current criteria RS-232C, Handler and USB storage interfaces Compact size (2U half-rack). Note. RS Pro LCR-6000 Series offers a choice of 5 models with different test frequency: 2 kHz, LCR-6002, ; 117-6718 117-6718 ; 20 kHz, LCR-6020, ; 117-6717 117-6717 ; 100 kHz, LCR-6100, ; 117-6716 117-6716 ; 200 kHz, LCR-6200, ; 117-6715 117-6715 ; 300 kHz, LCR-6300, ; 117-6714 117-6714 )
