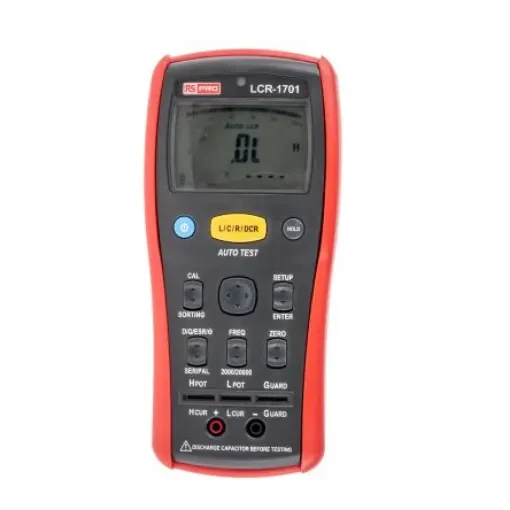

RS PRO LCR-1701 Handheld LCR Meter 20mF, 200 MO, 20000H - 1233255

Maximum Capacitance Measurement = 20mF
Maximum Resistance Measurement = 200 MO
Maximum Inductance Measurement = 20000H
Battery Life = 50 h
Battery Type = AA
Bench/Handheld = Handheld
Display Type = Auto Backlit Bar Graph Display
Power Source = Battery
Dimensions = 95 x 51.2 x 200mm
Weight = 605g
Height = 200mm
Length = 95mm
Maximum Operating Temperature = +50°C
Minimum Operating Temperature = 0°C
Model Number p = LCR-1701mm

Alligator clips, shorting bar, battery (installed), manual. RS Pro LCR1701 LCR Meter. The ISO-TECH LCR 1701 hand held LCR smart meter features innovative automatic selection technology. Its auto ON/OFF backlit display gives the user continuous visibility while extending battery life. This instrument is competitively priced, technically advanced, highly efficient, slim and tactile, with ergonomically designed comfort grip. Also includes alligator clips, shorting bar, battery (installed) and manual. Features and Benefits:. 20000/2000 Count dual digital display 46 segments bar graph display Auto selection of LCR testing Auto-ranging 0.2% basic accuracy capacitance and inductance Measurement parameters L.C.R.D.Q., O, EsR Parallel/serial test mode Sorting mode for QC. Test frequency 100 Hz, 120 Hz, 1 kHz, 10 kHz, selectable. Dimensions (W x L x D): 95 mm x 207 mm x 52 mm
