RS PRO IPM138N Clamp Meter, 600A dc, Max Current 600A ac CAT II 1000 V, CAT III 600 V - 1233258

Absolute Maximum AC Current Measurement = 600A ac
Absolute Maximum DC Current Measurement = 600A dc
Absolute Maximum AC Voltage Measurement = 600V ac
Absolute Maximum DC Voltage Measurement = 600V dc
Absolute Maximum Resistance Measurement = 20kO
Model Number = IPM138N
AC Current Measurement Resolution = 100mA
DC Current Measurement Resolution = 100mA
Best DC Current Accuracy = ±(1% rdg + 5dgts)
Clamp Meter Type = Power Clamp Meter
Best AC Current Accuracy = ±(1% rdg + 5dgts)
Best AC Voltage Accuracy = ±(1% rdg + 5dgts)
Jaw Capacity Busbars = 35mm
Minimum Operating Temperature = 0°C

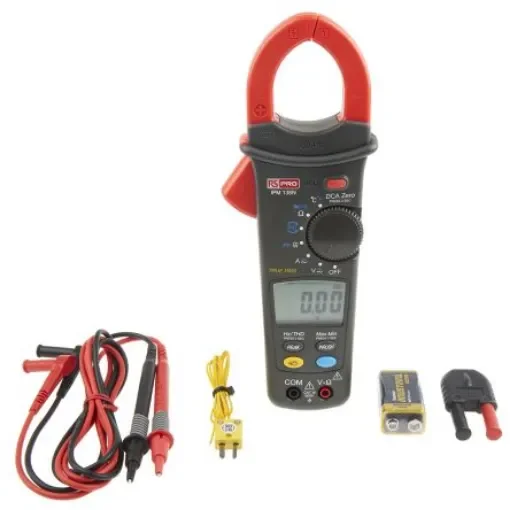

CAT III 600 V / CAT II 1000 V. Battery (installed), carrying case, temperature socket, K-type sensor and Instruction manual. RS Pro IPM138N Power Clampmeter. From the trusted RS PRO brand, the IPM138N Power clamp meter 1000 A AC-DC is a high performing solution for power and current measurement. It is ideal for extending the AC current measuring range of ISO-TECH and RS PRO clamp meters. It functions as a multimeter and analyzer that can measure current and power, and has a CAT II and CAT III safety rating. Battery-powered for maximum portability, and with a large backlit screen, this power clamp meter is ideal for on-the-go applications in almost any environment. It is also supplied in a carry case to keep the clampmeter safe and secure during transit. Features and Benefits 6000 Count digital display Backlit, Large-scale display True RMS reading on AC+DC mode Auto AC-DC 600 A capability and selection Auto AC-DC 1000 V capability and selection Auto Ohms/Continuity/Diode selection Power 600 K Watt capability 20 K Ohms Resistance capability Continuity Beeper Frequency Counter Power and Power factor measurement Total Harmonics distortion measurement °C / °F Temperature Function Inrush Current measurement DCA Auto-Zeroing Key Peak Hold MIN/MAX Function Display Hold Phase rotation indication Auto Power Off 4 ft Drop Proof Deluxe Carrying Case Convenient Battery Door Applications This multifunction clamp meter is designed for current measurement in electrical testing, and combines a digital multimeter with a clamping current sensor. The nature of the clamp means that it can fit around a wire at any point to sense current, voltage, continuity, frequency and more. This has the advantage of allowing electricians to take a reading from a wire without touching it, which is both more convenient and safer than other methods. They are used for measuring high levels of current in service and maintenance applications. They are also used when installing electrical equipment. Why RS PRO? RS PRO aims to be your go-to brand when you need reliability, quality, and affordability. We source high-quality tools and parts from trusted sources and employ expert testing to build a brand you can rely on. When it comes to test and measurement equipment, RS PRO has an extensive range of solutions. From electrical to environmental measurement, we offer calibrated and multi-function instruments to suit your needs.
