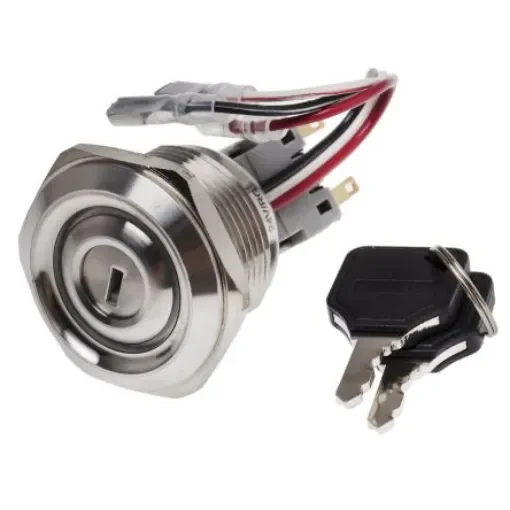

RS PRO IP40 Key Switch, DPDT, 5 A 2-Way - 8771915

Durable RS PRO IP40 Key Switch with anti-vandal design and reliable 5A performance.
Manufacturer part number: 8771915
GTIN: 5056112232957
Vendor: YACHTNEEDS-RS
Availability: In stock
€49.75
i h
Only Ships to: France, Monaco
For shipping outside these regions, please contact customer support.
Number of Positions = 2
Switch Operation = Latching
Contact Configuration = DPDT
Contact Current Rating = 5 A
IP Rating = IP40
Terminal Type = Solder
Case Material = Stainless Steel
Bezel Shape = Round
Depth Behind Panel = 52mm
Key Index Angle = 90°
Contact Material = Silver
Minimum Operating Temperature = -20°C

30mm Anti-Vandal Key Lock Switches. Anti-vandal key lock switches with ring illumination for indication. Three LED voltage types are available; 12V, 24V and 220V The illumination shows red when the switch is in the off position and green in the on position. The switches have an impact resistance rating of IK03, and a front panel protection rating of IP40. They are supplied with an LED resistor to protect from forward voltage fluctuations.The switch body and button are constructed from stainless steel with a varnish finish. Electrical life: 50000 make and break operations at full load Panel cut-out diameter: 30.2 mm Keys can be removed in all positions
