RS PRO Handheld Capacitance Meter 20mF - 1238770

Maximum Capacitance Measurement = 20mF
Battery Life = 200 h
Battery Type = 9V
Bench/Handheld = Handheld
Display Type = LCD
Power Source = Battery
Dimensions = 87 x 39 x 185mm
Weight = 290g
Height = 185mm
Length = 87mm
Maximum Operating Temperature = +50°C
Minimum Operating Temperature = 0°C
Width = 39mm

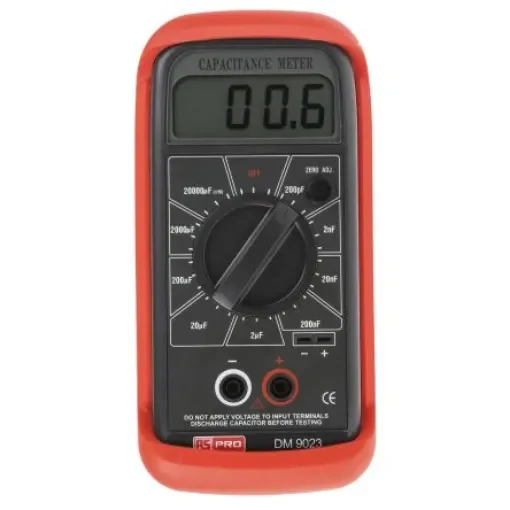

instructions, test lead set, rubber holster, 9V PP3 alkaline battery. 3. RS Pro DM-9023 Handheld Capacitance Meter with LCD. RS Pro DM-9023 LCR meter is a great value handheld capacitance meter which features an 18 mm high 2000-count LCD display. Ability to check tolerance, sort values, select precision values, unmarked capacitors measurement and switch or PCB layout capacitance. Lead capacitance may be nulled out with the instrument's front panel zero adjust facility. Also includes alligator clips, instructions, test lead set, rubber holster, 9v PP3, spare fuse 0.2A and alkaline battery. Features and Benefits:. Nine rotary switch selectable ranges, covering 200 µF to 20000 µF Accuracy 200 pF - 2000 µF ±1% FS ±1 digit, 20 kµF ±2% FS ±2 digits Low power consumption Up to 200 hours battery life Sampling rate 0.5 seconds High accuracy Test frequency 8Hz. Dimensions 185 x 87 x 39 mm. Areas of Application Laboratory applications Field service applications
