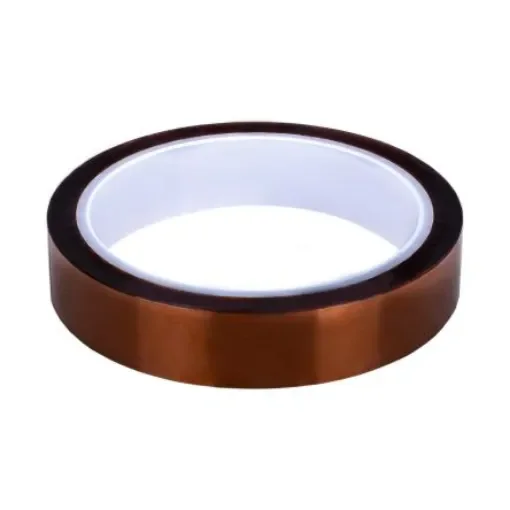

RS PRO Electro Insulating Tape Amber Polyimide Film Electrical Tape, 25mm x 33m - 6211LS 25mmx33m

Colour = Amber
Width = 25mm
Length = 33m
Backing Material = Polyimide Film
Thickness = 0.06mm
Maximum Operating Temperature = 260°C
Trade Name = Electro Insulating Tape

SHT2x Digital Humidity ; Temperature Sensors. The Sensirion SHT2x series of DFN digital humidity ; temperature sensors are CMOSens® based. They are an industry standard, widely used humidity and temperature sensor. Humidity is measured using a capacitive sensor while temperature is measured using a band-gap sensor. The SHT2x sensors also contain a version 4 silicon chip with an amplifier, A/D converter, OTP memory and a digital interface. They come in a plastic package which leaves the sensor area open, protecting the devices from external impact and providing long-term stability. SHT2x sensors are ideal for both high and low volume applications. The SHT21P has a PWM output and the SHT21S has a PDM output; these can be converted into analogue outputs by the use of suitable low-pass filters. SHT20 - Low cost, SHT21 - Standard, SHT25 - High Accuracy. CMOSens® based technology Fully calibrated I²C serial interface (Not SHT21P/SHT21S) Digital output Low power consumption Long-term stability Supply voltage range: 2.1 to 3.6 V. The following sensors are available:. ; 123-7351 123-7351 · SHT20 · I²C Digital output ; 786-5554 786-5554 · SHT21 · I²C Digital output ; 876-5055 876-5055 · SHT21P · PWM output ; 876-5064 876-5064 · SHT21S · PDM output ; 727-6226 727-6226 · SHT25 · I²C Digital output
