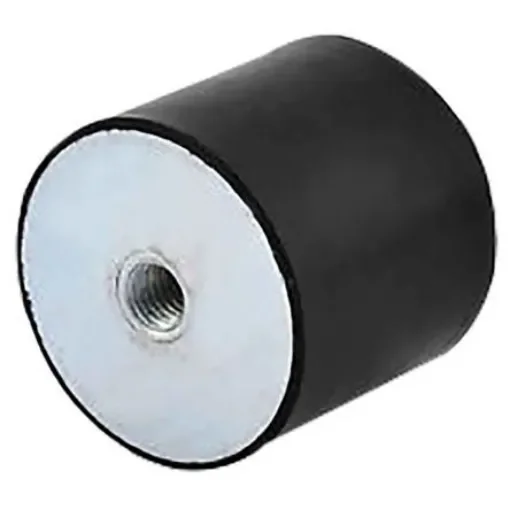

RS PRO Cylindrical M8 Anti Vibration Mount, Female to Female Bobbin with 48.64kg Compression Load - 1854493

Anti Vibration Mount Type = Female to Female Bobbin
Thread Size = M8
Diameter = 30mm
Overall Height = 30mm
Material = Stainless Steel
Foot Shape = Cylindricalkg

RS PRO Cylindrical Bobbin MountThe RS PRO female/female cylindrical bobbin mount has a thread size of M8 and dimensions of 30mm x 30mm (diameter x height). This stainless steel (316 grade) bobbin mount has a shore hardness of 55ShoreA and can be used in either compression and/or shear.Features and Benefits• Simple and cost-effective vibration isolators • Compression load: 48.64kg • Maximum shear load: 18.30kgApplications• Static generator engines • Compressors • MotorsCertifications• ANSI/ESD S20.20:2014 • BS EN 61340-5-1:2007
