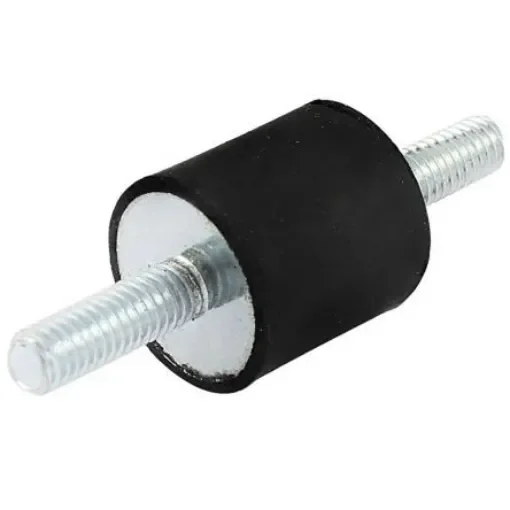

RS PRO Cylindrical M10 Anti Vibration Mount, Male to Male Bobbin with 127.8kg Compression Load - 1854492

Name: RS PRO Cylindrical M10 Anti Vibration Mount, Male to Male Bobbin with 127.8kg Compression Load - 1854492
SKU: 1854492
Price: 27.27 EUR
Availability: InStock

RS PRO's M10 cylindrical anti vibration mount provides effective vibration isolation with a 127.8kg load capacity.

Manufacturer part number: 1854492

GTIN: 5059045117391

Vendor: YACHTNEEDS-RS

Availability: In stock

€27.27

Qty:

i h

Only Ships to: France, Monaco

For shipping outside these regions, please contact customer support.

Anti Vibration Mount Type = Male to Male Bobbin
Thread Size = M10
Diameter = 50mm
Overall Height = 85mm
Material = Stainless Steel
Foot Shape = Cylindricalkg

RS PRO Cylindrical Bobbin MountThe RS PRO male/male cylindrical bobbin mount has a thread size of M10 and dimensions of 50mm x 35mm x 25mm (diameter x height x stud length). This stainless steel (316 grade) bobbin mount has a shore hardness of 55ShoreA and can be used in either compression and/or shear.Features and Benefits• Simple and cost-effective vibration isolators • Compression load: 127.84kg • Maximum shear load: 45.6kgApplications• Static generator engines • Compressors • MotorsCertifications• ANSI/ESD S20.20:2014 • BS EN 61340-5-1:2007
