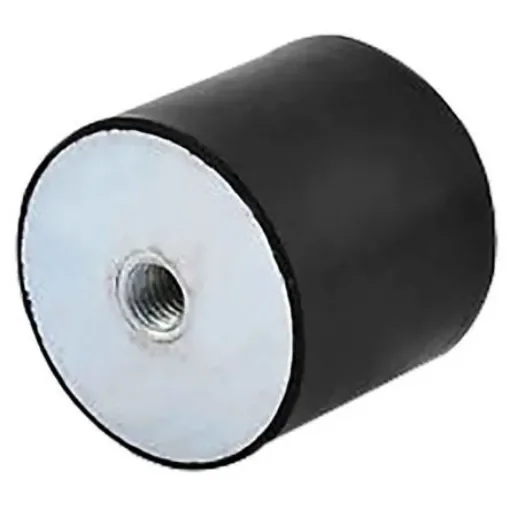

RS PRO Cylindrical M10 Anti Vibration Mount, Female Buffer Foot with 147.04kg Compression Load - 1854491

Name: RS PRO Cylindrical M10 Anti Vibration Mount, Female Buffer Foot with 147.04kg Compression Load - 1854491
SKU: 1854491
Price: 27.27 EUR
Availability: InStock

Durable RS PRO cylindrical anti vibration mount with 147.04kg load capacity for effective vibration isolation.

Manufacturer part number: 1854491

GTIN: 5059045117384

Vendor: YACHTNEEDS-RS

Availability: In stock

€27.27

Qty:

i h

Only Ships to: France, Monaco

For shipping outside these regions, please contact customer support.

Anti Vibration Mount Type = Female Buffer Foot
Thread Size = M10
Diameter = 50mm
Overall Height = 35mm
Material = Stainless Steel
Foot Shape = Cylindricalkg

RS PRO Cylindrical Bobbin MountThe RS PRO female/female cylindrical bobbin mount has a thread size of M10 and dimensions of 50mm x 35mm (diameter x height). This stainless steel (316 grade) bobbin mount has a shore hardness of 55ShoreA and can be used in either compression and/or shear.Features and Benefits• Simple and cost-effective vibration isolators • Compression load: 147.04kg • Maximum shear load: 50.78kgApplications• Static generator engines • Compressors • MotorsCertifications• ANSI/ESD S20.20:2014 • BS EN 61340-5-1:2007
