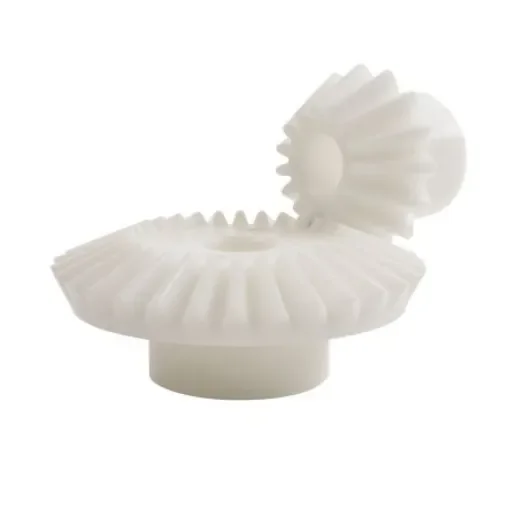

RS PRO Bevel Gear, 18mm Bore, 30 Teeth, 2.5 Module - 1828009

Bore = 18mm
Module = 2.5
Gear Type = Bevel
Number of Teeth = 30
Nominal Gear Ratio = 3:1
Pitch = 2.5mm
Pressure Angle = 20°

RS PRO Hostaform Bevel GearThe RS PRO 3:1 metric moulded bevel gear is made from white HOSTAFORM®C. It has a pitch module of 2.5 and 30 teeth. Other Information: What are bevel gears? Bevel Gear is a cone-shaped gear, which transmits power between two intersecting axels. Why choose HOSTAFORM® gears? HOSTAFORM® is a semi-crystalline, thermoplastic polymer. It is a versatile engineering plastic with good wear resistance, hardness, rigidity, excellent dimensional stability, long-term creep resistance and outstanding resistance to moisture, alkaline solutions, fuels and many chemicals.Features and Benefits• Standard tolerances, unless otherwise stated 0.25mm • Shaft axis to intersect within 0.025mm • Angular accuracy between shafts 5mins • Mounting distance tolerance 0.05mm • Bore tolerance H8 • Cut to the Gleason System • 20 pressure angle • Supplied in pairsCertifications• EN certified • DIN 3964 • DIN 3967 • DIN 3971
