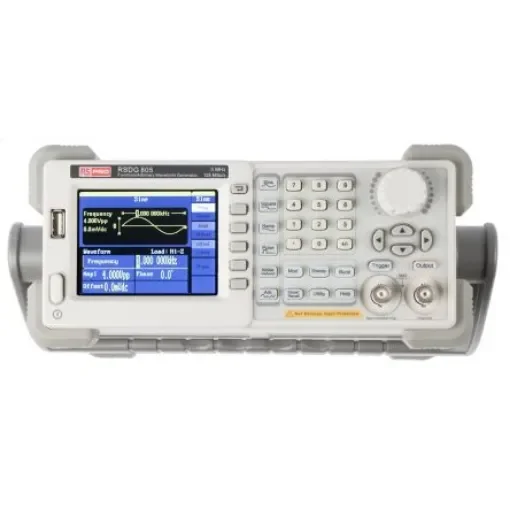

RS PRO Arbitrary Waveform Generator, 5MHz Max, 0 MHz Min - 1236458

Quick start guide, CD(including EasyWave computer software system), power cord, USB cable. 3. RS Pro RSDG800 Series Function/Arbitrary Waveform Generators. RS Pro RSDG800 Series function/arbitrary waveform generators output Sine, Square, Ramp, Pulse, Noise and Arbitrary waveform functions. The RSDG800 models are powered with EasyPulse technology which produces low jitter, fast rising/falling edges unaffected by frequency, even at low duty cycle settings. The advantage is that the operator has a wide range of pulse widths and transition times. This results in a more versatile generator than similar DDS designs. Features and Benefits. DDS technology, single-channel output 125 MSa/s sample rate, 14 bit vertical resolution 5 types of standard output waveform, built-in 46 arbitrary waveforms Complete set of modulation functions: AM, DSB-AM, FM, PM, FSK, ASK, PWM, Sweep, Burst Input/output - waveform output, synchronous signal output, external trigger input Standard interfaces USB Device, USB Host Supplied with powerful arbitrary editing software Support remote control Dimensions 229 x 105 x 281 mm Weight 3.4 kg. Areas of Application. Analog sensor Simulation environment signals Circuit function test IC test Research ; Development Training
