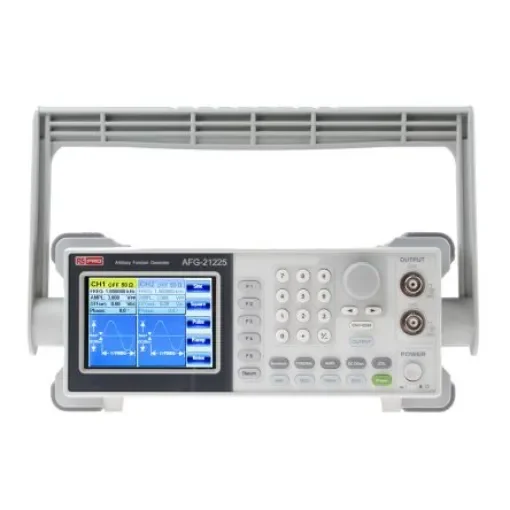

RS PRO AFG21225 Function Generator & Counter, 1µHz Min, 25MHz Max, FM Modulation, Variable Sweep - 1233534

Maximum Frequency Range Sinewave = 25MHz
Output Impedance = 50O
Minimum Frequency Range Sinewave = 1µHz
Variable Sweep = Yes
FM Modulation = Yes
Time Base Accuracy = ±20ppm
Digital Frequency = Yes
Maximum Frequency Range Triangle/Saw = 1MHz
Length = 266mm

Power cord, test leads (x2), user manual CD, quick start guide. 3. RS PRO AFG-21225 True Dual Channel Arbitrary Waveform Function Generator. RS PRO AFG-21225 is a base-level dual-channel arbitrary function generator which offers superior functions in its class. The two channels are similarly equipped in order to to accommodate dual-signal applications such as differential signalling or IQ modulation. They can be used in either independent or correlated (Couple, Tracking, Phase) configuration. There are four ways the AFG-21225 can generate customised arbitrary waveforms: editing waveform via PC software; point-by-point editing on the panel; loading CSV file; loading captured waveform from RS Pro IDS Series oscilloscopes. The AFG-21225 has a 3.5 inch LCD which displays the operation information, including the true waveform presented at the output. User friendliness and outstanding cost-performance make the AFG-21225 an instrument of choice not only for practical considerations but also for capabilities which can accelerate the development process. Features and Benefits. • Wide frequency ranges from 1 µHz - 25 MHz (sine wave) • 1 µHz resolution in full range • Built-in standard 120 MSa/s, 10 bit, 4 Kpts arbitrary function for both channels • True dual-channel output - CH2 provides same characteristics as CH1 • Dual-channel supports Couple, Tracking, Phase operations • 1% - 99% adjustable duty cycle for square waveform • User-friendly interface for easy parameter setting and parameter display • Built-in standard AM/FM/PM/FSK/SUM/Sweep/Burst and Frequency Counter • USB host/device interface for remote control. Applications. • Power supply/transformer simulations • Traditional/motor power • Laboratory and educational research • Pulse signal as trigger or synchronisation • Automotive electronics. RS PRO. RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards; they ‘re only given the RS PRO Seal of Approval if we ‘re confident of their exceptional quality, which means you can be confident too.
