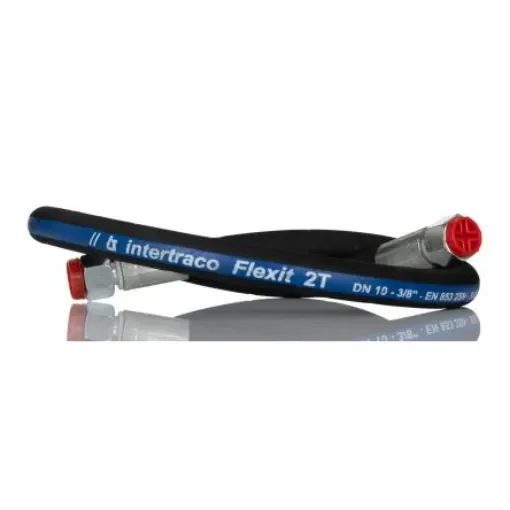

RS PRO 858mm Synthetic Rubber Hydraulic Hose Assembly, 330bar Max Pressure - 1102004

Connector B = Straight G 3/8 Female
Overall Length = 858mm
Inside Diameter = 3/8in
Maximum Operating Pressure = 330bar
Inner Hose Material = Synthetic Rubber
Reinforcing Material = Steel
Cover Material = Synthetic Rubber
Connector B - Thread Standard = G
Connector A - Angle = Straight
Connector B - Thread Size = 3/8in
Connector A - Thread Standard = G
Connector B - Gender = Female
Connector A - Thread Size = 3/8in

Flexible hose assemblies are capable of transmitting fluids at high pressures. Careful attention should be given to application, material ; technical specifications. These assemblies are not suitable for use with our range of high pressure hydraulic cylinders and pumps which have working pressures to 700 bar. They are outside the terms of our BS 5750 Part 2 stockist of assessed capability level B registration. Pin prick cover for air or gas applications above 17 bar (250 psi). RS PRO Straight Hydraulic Hose Assemblies. Get connected with RS PRO straight hydraulic hose assemblies. Our assemblies consist of synthetic rubber outer covering and high tensile steel wire reinforcing. The hose is flexible, crimped with a female-to-female end fitting ready to connect to other hydraulic components. During application, the hose transmits hydraulic fluid from one location to another in a hydraulic system. Features and Benefits. ;ul> ;li>Flexible hydraulic hose assemblies ;/li> ;li>Crimped end fittings ;/li> ;li>Synthetic rubber outer covering ;/li> ;li>High tensile steel wire reinforcing ;/li> ;li>Suitable for mineral oils, lubricating oils, water glycol, water oil emulsion, and hydraulic fluids ;/li> ;/ul>. Specifications. ;ul> ;li>Connector: Female to Female ;/li> ;li>Thread size: 1/ 4 in, 3/8in, 1/ 2 in or 3 /4in ;/li> ;li>Operating Temperature: -40 °C to +100°C ;/li> ;/ul>. Applications. Applications include, medium-pressure service with petroleum base hydraulic fluids, mineral oils, lubricating oils, water glycol, water-oil emulsion hydraulic fluids, hot oil, grease, crude and fuel oils, air and water.
