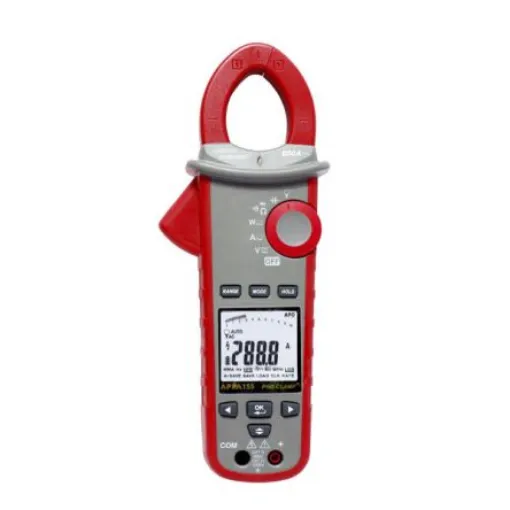

RS PRO 155B Clamp Meter Bluetooth, Max Current 600A ac CAT III 1000 V, CAT IV 600 V - 1624455

Absolute Maximum AC Current Measurement = 600A ac
Absolute Maximum AC Voltage Measurement = 1000V ac
Absolute Maximum DC Voltage Measurement = 1000V dc
Absolute Maximum Resistance Measurement = 100kO
Model Number = 155B
Clamp Meter Type = Power Clamp Meter
Best AC Current Accuracy = ±(1.5% rdg + 5dgts)
Best AC Voltage Accuracy = ±(1% rdg + 5dgts)
Best DC Voltage Accuracy = ±(0.7% rdg + 2dgts)mm
Power Source = Batterymm

RS PRO 155B Bluetooth Power Clamp Meter The RS PRO 155B power clamp meter with Bluetooth connectivity is a highly reliable device ideal for measuring a range of electrical parameters including AC Current, AC Voltage, Capacitance, Continuity, DC Current, DC Voltage, Diode, Frequency and Resistance. This true RMS clamp meter from RS PRO provides advanced power features, phase rotation, total harmonics distortion, which enables fully professional power measurement application with excellent performance. The RS PRO 155B also includes Bluetooth connectivity for streaming data on mobile devices, providing easy data acquisition and analysis. Features and benefits • 10,000 count digital display • 50 segment analogue bar graph • Large LED backlit display • Bluetooth connecting • Auto store up to 1000 memories • Data logging up to 9,999 records • True RMS reading on AC and AC+DC mode • Torch lightening on trigger push • Auto Ohms/Continuity/Diode selection • AC 600 Amps capability • Auto AC/DC 1000 Volts capability and selection • AC current via flexible current probe • Power and power factor measurement • Total harmonics distortion and harmonics 1 to 25 • Phase rotation indication • 100K Ohms resistance capability • Frequency counter • Capacitance capability • Smart data hold, peak hold, min max hold functions • Inrush current • High frequency rejection • Auto power off • Up to 33mm dia. (750MCM) conductor • Deluxe carrying case • Hand guard & stream line designed • Convenient battery door Applications Clamp meters are an electrical test tool used to measure electrical characteristics such as AC current, AC and DC voltage, resistance, continuity and more. Clamp meters are often a combination of a basic digital multimeter and a current sensor, offering a versatile electrical measurement tool. Clamp meters are commonly used by: • Industrial maintenance technicians • Control technicians • Electricians – in-house and contractors • Facilities, building maintenance and HVAC technicians • Service organisations FAQs What battery does this require? The RS PRO 155B power clamp meter with Bluetooth connectivity requires 1.5V AAA (x 6) Alkaline batteries. What is supplied? • x 6 1.5V AAA batteries (installed) • Test leads • User manual • Carrying case Bluetooth connectivity The meter uses low-power Bluetooth v 4.0 wireless technology to transfer the real-time data. You can use the RF communication to link to android or apple devices.
