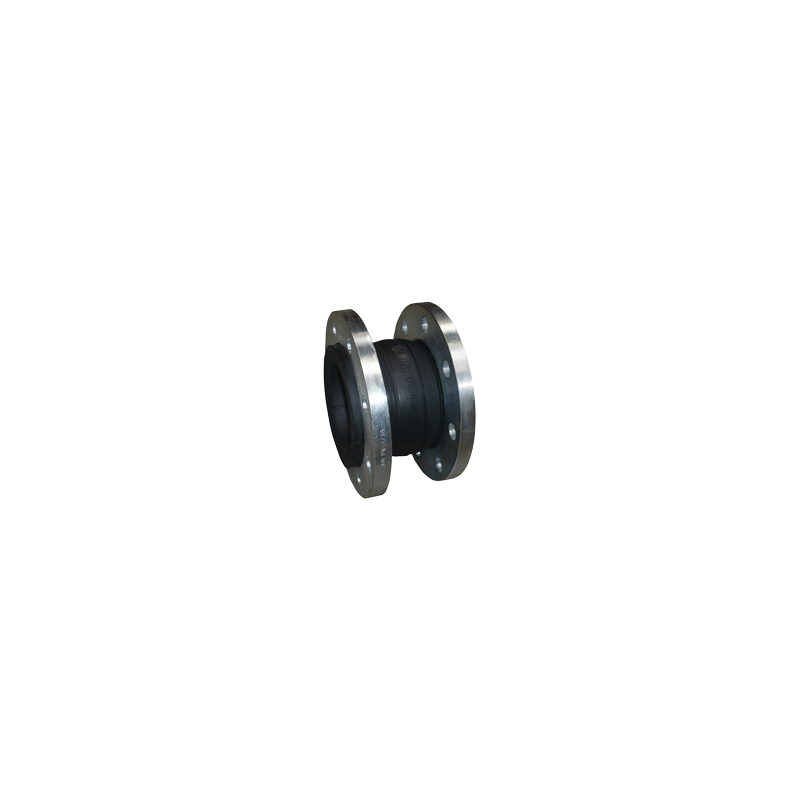

Key Features:
- Designed for the absorption of vibrations, noise, and thermal expansions in piping systems.
- Equipped with rotating flanges for easy installation and maintenance.
- Constructed with NBR (Nitrile Butadiene Rubber) material, suitable for applications involving mineral oils, hydrocarbons, and fuel oils.
- Conforms to PN10/16 standards, ensuring compatibility with various piping systems.
- Length between flanges is 130mm, providing flexibility in installation.
Technical Specifications:
- Pressure Rating: 16 bars
- Temperature Range: -10°C to +80°C
- Flange Type: Rotating flanges, electro-galvanized steel
- Bellow Type: Simple NBR bellows
- Standard Compliance: PN10 (EN1092-1)
Materials:
- Bellow Material: NBR (Nitrile Butadiene Rubber)
- Flange Material: Electro-galvanized steel
Dimensions:
- Nominal Diameter (DN): 50 mm
- Length Between Flanges: 130 mm
Compatibility Information:
- Suitable for piping systems conveying mineral oils, hydrocarbons, and fuel oils.
- Compatible with PN10/16 flanged connections as per EN1092-1 standards.
Additional Details:
- The compensator is designed to accommodate linear and angular movements, effectively reducing stress on piping systems.
- It is advisable to consult the manufacturer's technical documentation for detailed installation and maintenance guidelines.
