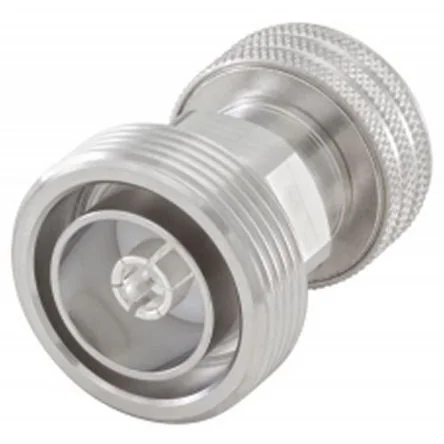

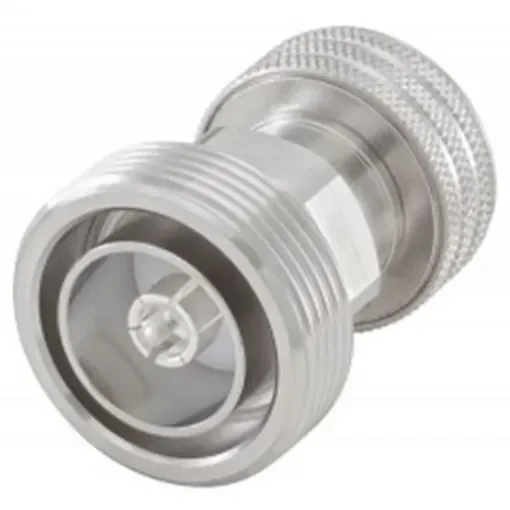

Rosenberger Straight 50O Coax Adapter 7/16 Socket to 4.3-10 Plug 8.3GHz - 60K164-S60N1

Adapter Type = 4.3-10 Plug to 7/16 Jack
Adapter Type A = 7/16
Adapter Type B = 4.3-10
Gender A = Female
Gender B = Male
Impedance = 50O
Body Orientation = Straight
Operating Frequency = 8.3GHz
Contact Plating = Silver/White Bronze
Length = 39.7mm
Body Plating = White Bronze
Cable Type = Coaxial
Contact Material = Beryllium Copper, Brass

Rosenberger 4.3-10 RF Coaxial Cable Adapters. 4.3- 10 RF coaxial cable adapters with a compact, lightweight design and interface according to IEC 61169-54. The footprint of these 4.3- 10 adapters is 40% smaller than 7-16 connectors making them ideal for use in applications where space is limited. These 4.3-10 coaxial cable adapters have a high electrical performance and a low PIM (Passive Intermodulation) independent of torque. The electrical and mechanical planes of these RF coaxial cable adapters have been separated resulting in a low coupling torque for easy connection. The body of these coaxial cable adapters has a white bronze plating that provides protection against oxidization. These RF coaxial cable adapters are available with In-Series or Inter-Series configurations and enable the connection of different RF interfaces. Features and Benefits. Interface according to IEC 61169-54 Low PIM and high electrical performance Compact and lightweight design Small foot print Low coupling torque Easy installation Outstanding insertion/return loss White bronze plated body for protection against oxidization. Product Application Information. These 4.3-10 RF coaxial cable connectors are designed to meet the increasing performance needs of mobile communications applications. Their compact design means that they are able to support the ongoing space reduction requirements of infrastructure equipment
