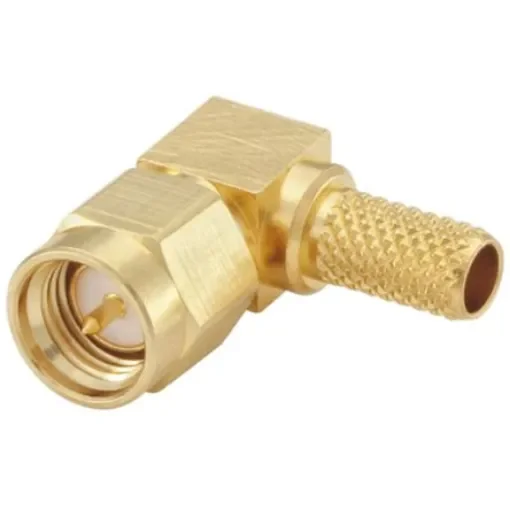

Rosenberger SMA Series, Plug Cable Mount SMA Connector, 50O, Crimp Termination, Right Angle Body - 32S207-307L5

Coaxial Connector Type = SMA Connector
Mounting Type = Cable Mount
Impedance = 50O
Termination Method = Crimp
Body Orientation = Right Angle
Cable Type = Flexible
Bulkhead = No
Operating Frequency = 0 to 18GHz
Body Plating = Gold
Series = SMA
Contact Material = Beryllium Copper
Contact Plating = Gold
Mating Type = Screw On

Rosenberger SMA RF Coaxial Plug and Jack Cable Mount Connectors. A range of 50 OHM SMA RF coaxial connectors available as straight or right angle coax plugs and straight coax jacks for use with a variety of coaxial cable types. These 50 OHM SMA RF coaxial cable jack and plug connectors have a mating interface according to IEC 60169-15; EN 122110; MIL-STD-348A. SMA coax connectors with crimp terminations are supplied with a crimp ferrule. For suitable RF cable types please refer to additional data table
