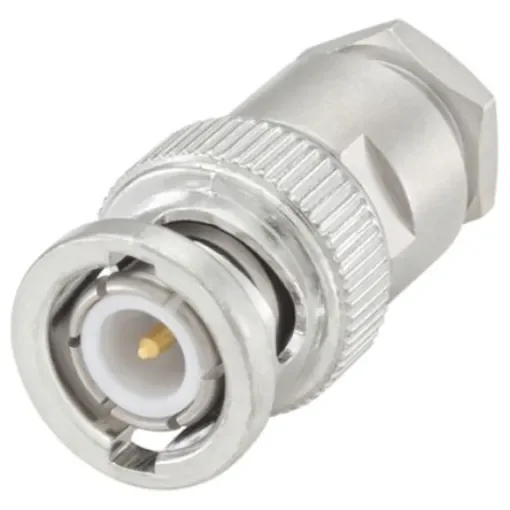

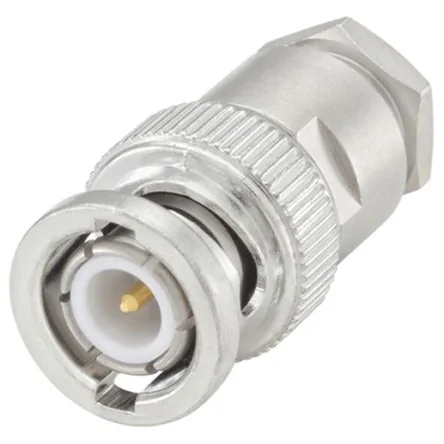

Rosenberger BNC Series, Plug Cable Mount BNC Connector, 50O, Clamp Termination, Straight Body - 51S106-006N5

Coaxial Connector Type = BNC Connector
Mounting Type = Cable Mount
Impedance = 50O
Termination Method = Clamp
Body Orientation = Straight
Cable Type = RG141 A/U, RG58 C/U
Bulkhead = No
Operating Frequency = 0 to 10GHz
Body Plating = Flash White Bronze
Series = BNC
Contact Material = Copper Zinc Alloy
Contact Plating = Nickel/Silver/White Bronze
Series Number = 51S106

Rosenberger BNC RF Coaxial Cable Mount Plug Connectors. A range of 50 OHM BNC RF coaxial connectors available as straight or right angle coaxial plugs for use with a variety of coaxial cable types. These 50 OHM BNC RF coaxial cable mount jack connectors have a mating interface according to IEC 60169-8, MIL-PRF-39012, CECC 2212 and a brass body with a white bronze over silver plating. BNC coaxial connectors with stock numbers ; 819-4295 819-4295 , ; 819-4298 819-4298 and ; 819-4308 819-4308 have crimp terminations and are supplied with a crimp ferrule.
