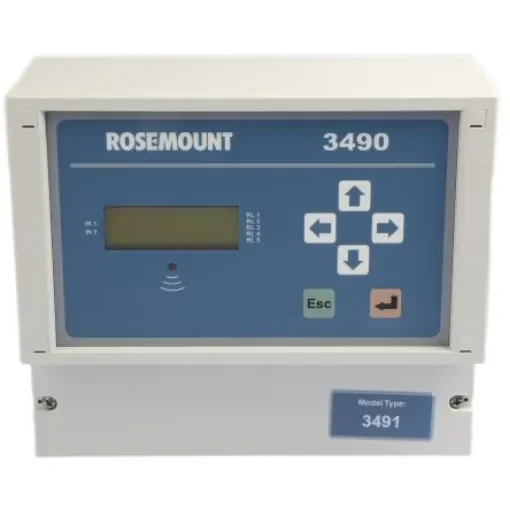

Rosemount 3490 Series Level Controller - Wall Mount ATEX, 115 [arrow/] 230 V ac 1 Current, Voltage Input 1 x 4 - 20mA + - 3491L1P6I1

Number of Inputs = 1
Mounting Style = Wall Mount
Probe Voltage = 230/115Vac selectable
Supply Voltage = 115 V ac, 230 V ac
Overall Length = 213mm
Overall Width = 185mm
Overall Depth = 84mm
Minimum Operating Temperature = -40°C
Maximum Operating Temperature = +55°C
Hazardous Area Certification = ATEX
IP Rating = IP65V dc

Rosemount Level ControllerThe Rosemount 3490 series level controller is a single input and panel mount device. This control unit provides comprehensive control functionality for any compatible transmitter ranging between 4mA and 20 mA. It has a back-lit display that gives a clear visual indication of the measured value and status of all inputs and outputs. It requires 115/230VAC power supply. This controller has easy to understand menus and a programming wizard function make programming easy while password protection protects from accidental or unauthorised changes.Features and BenefitsStandard control unit accepts input from one transmitter Compatible with HART 5, 6 and 7 Transmitters Five voltage-free SPDT relays for alarm and control duties Supports two voltage-free contact closure inputs Bright local display of measured value and input/output status Pre-programmed tank shapes, flow algorithms and control routines simplify configuration. 20-point strapping table facility is provided for non-standard applications Real-time clock for energy-saving routines, pump efficiency calculations and date/time stamping of data logging Panel mount enclosure with 2-part cage clamp terminal blocks at the rearCertificationsIP65 rated EN61010-1 ATEX intrinsically safe approvals
