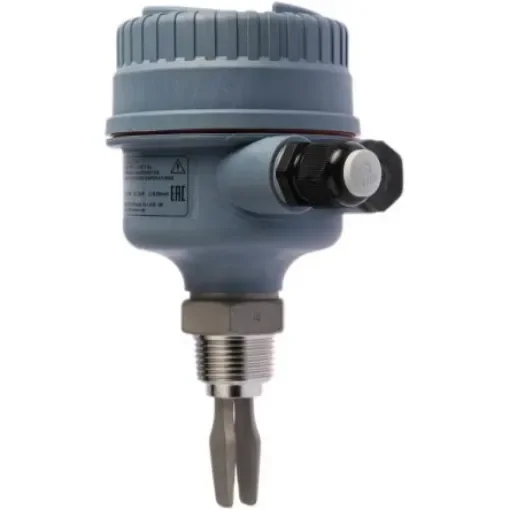

Rosemount 2120 Series Fork Level Switch Vibrating Level Switch, NAMUR Output, Side or Top Mount, Glass Filled Nylon - 2120D1AK1I1AA0000

Device Type = Fork Level Switch
Mounting Type = Side or Top Mount
Switch Output = NAMUR
Body Material = Glass Filled Nylon
Minimum Operating Temperature = -40°C
Maximum Operating Temperature = +150°C
Maximum Current = 2.5 mA
Maximum Pressure = 100bar
Gasket Material = Non Asbestos Sheet
Series = 2120

Rosemount Liquid Level SwitchThe Rosemount Liquid Level Switch is designed using the principle of a tuning fork. A piezo-electric crystal oscillates the forks at their natural frequency. The frequency of the vibrating fork sensor changes depending on the medium in which it is immersed. The denser the liquid, the lower the frequency. When used as a low-level alarm, the liquid in the tank or pipe drains down past the fork, causing a change of natural frequency that is detected by the electronics and switches the output state. When 2110 is used as a high-level alarm, the liquid rises in the tank or pipe, making contact with the fork which then causes the output state to switch.Features and BenefitsMaterials of construction is 316/316L stainless steel (1.4401/1.4404) dual certified Process connection size is 1in BSPT (R) Thread Fork length is standard length of 1.7in (44mm) Operation temperatures ranges from –40°C and 150°C Function virtually unaffected by flow, bubbles, turbulence, foam, vibration, solids content, coating products, liquid properties, and product variations A ’heartbeat’ LED indicates its operating state, LED also flashes when the switch output is ’off’ and is constantly lit when on Adjustable switching delay prevents false switching in turbulent or splashing applications ’Fast drip’ fork design gives quicker response time, especially with viscous liquids Rapid wet-to-dry and dry-to-wet time setting for highly responsive switching Fork shape is optimized for polishing to meet hygienic requirements Mechanical- and electro-polishing options Magnetic test point makes functional test easy No moving parts or crevices for virtually no maintenanceApplicationsOverfill protection High and low point level alarms Pump control or limit detection Run dry or pump protection Hygienic applications High-temperature applications Wireless applications Most liquids including coating liquids, aerated liquids and slurriesCertificationsATEX Intrinsic Safety
