Rohde & Schwarz RTM3004 RTM3000 Series, 500MHz Bench Oscilloscope, 4 Analogue Channels, 16 Digital Channels - RTM3K-54M

Bandwidth = 500MHz
Number of Analogue Channels = 4
Interface = CAN, IIC, LIN, RS232, RS422, RS485, SPI, UART, USB
Sample Rate Random = 2.5 Gsps, 5 Gsps
Screen Size = 256.04mm
Series = RTM3000
Maximum Vertical Sensitivity = 10V/div

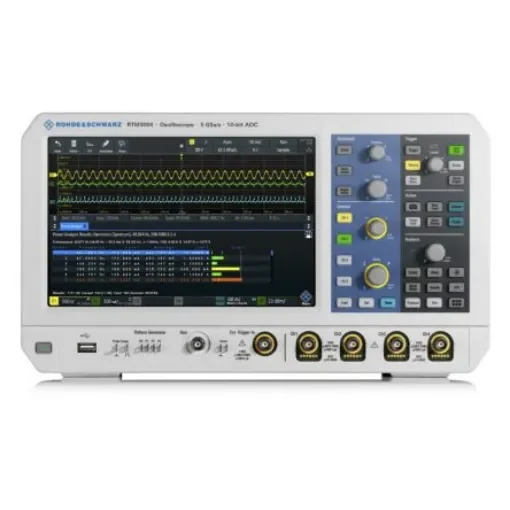

Rohde & Schwarz RTM3000 Series RTM3004 OscilloscopeThe Rohde & Schwarz RTM3000 digital oscilloscope is designed with high vertical sensitivity and can perform multiple functions. It allows a bandwidth of 500MHz, memory depth up to 40M sample and sampling rate up to 5GS/s. It has a 10 bit analogue to digital converter that offers sharper waveforms with more signal details. This oscilloscope has a large capacitive touch display of 10.1in with highest resolution of 1280 x 800 pixel. It has four analogue channels and performs multiple functions like logical and protocol analyser, waveform and pattern generator for quick and efficient analysis. This oscilloscope also acts as digital voltmeter for simultaneous and precise measurements. This instrument is an ideal choice for the power signal details up to 10 bit resolution.Features and Benefits• Allows multiple functions with software licence such as bandwidth upgrade and serial bus analysis • Includes probe interface suitable for all Rohde & Schwarz probes • Touchscreen display with gesture support as like smartphones • Built-in logical analyserApplications• Educational institutes • Used by service technicians • R&D troubleshooting • Production testing
