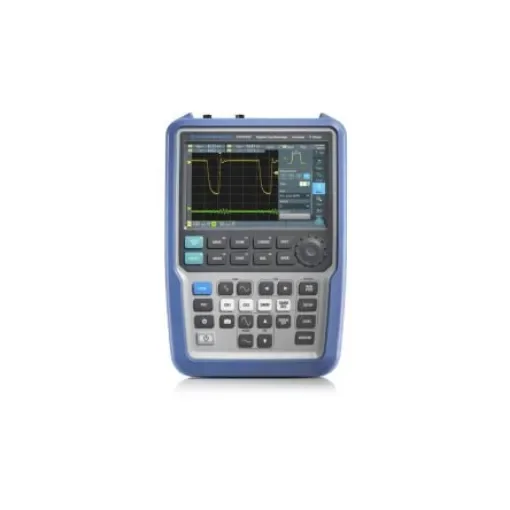

Rohde & Schwarz RTH1004 Scope Rider Series, 350MHz Handheld Oscilloscope, 4 Analogue Channels, 8 Digital Channels - RTH1034MSO

Rohde & Schwarz RTH100 Series RTH1004 OscilloscopeThe Rohde & Schwarz RTH100 series handheld digital oscilloscope is a portable universal tool for laboratory and field use. It allows a bandwidth of 350MHz, memory depth up to 50MS and sampling rate up to 5GS/s. The input signal voltage required to operate this oscilloscope is 300V. It has LCD TFT, touch display of 7in with a resolution of 800x480 pixels. The analogue to digital converter resolution is 10 bit. It has four channels. The oscilloscope has isolated channels for power signal measurements up to CAT IV 600V. It performs multiple functions like lab performance oscilloscope, logical and protocol analyser, waveform and pattern generator in one instrument.Features and Benefits• Wireless LAN for web-based remote control • Bandwidth is upgradeable via software keycode • Includes 8 channel logic probe and micro-test connectors • Optional software packages available • Works on Lithium-ion rechargeable battery • Automatic measurement of multiple parametersApplications• Educational institutes • Used by service technicians • R&D troubleshooting • Production testing • Power electronics
