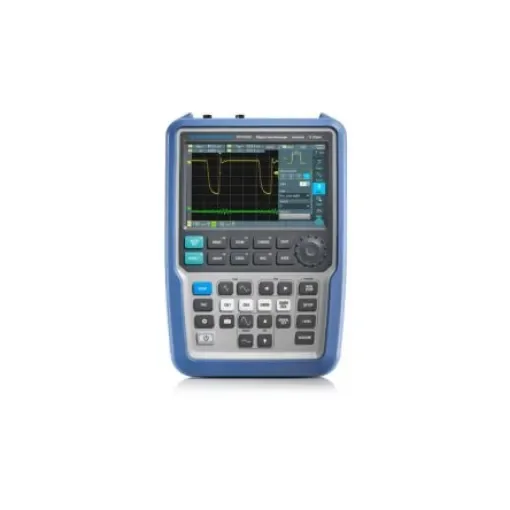

Rohde & Schwarz RTH-B1 Mixed Signal Upgrade Oscilloscope Module for Use with RTH1002 Series, RTH1004 Series

Mixed Signal Logic Analyser Option. Mixed signal upgrade option for non-MSO (Mixed Signal Option) models, 250 MHz. The R ;S RTO-B1 MSO option turns the R ;S RTO oscilloscopes into fast, precise and easy-to-use mixed signal oscilloscopes (MSO). Suitable for use with the following ScopeRider digital oscilloscopes: RTH1002 and RTH1004 (RS Stock No's. 125-9462 125-9463 respectively). Benefits. MSO option enhances analysis capabilities of the R ;S®RTO oscilloscopes. More signal details thanks to high time resolution across the entire memory depth. Reliable triggering on signal events. Specifications. Digital channels: 16 channels (2 logic probes). Input impedance: 100 kO ± 2 % // ~4 pF (meas.) at probe tips
