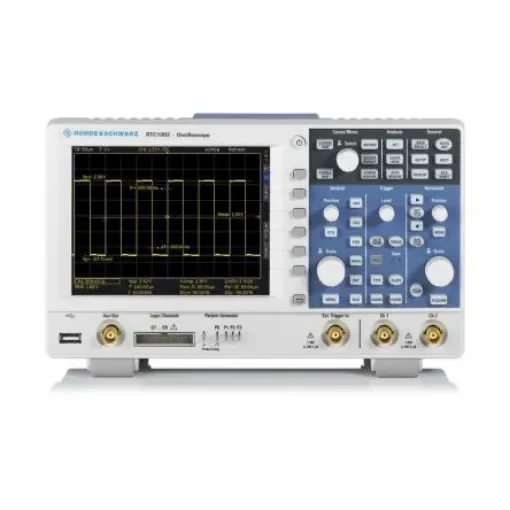

Rohde & Schwarz RTC1002 RTC1000 Series, 200MHz Bench Oscilloscope, 2 Analogue Channels, 8 Digital Channels - RTC1K-202M

Rohde & Schwarz RTC1000 Series RTC1002 OscilloscopeThe Rohde & Schwarz RTC1000 digital oscilloscope is designed with high vertical sensitivity and can perform multiple functions. This allows a bandwidth of 200MHz, memory depth of 2Mpts and sampling rate of 2Gsa/s. This oscilloscope also has a function generator for different types of signals having frequencies up to 50KHz. It has eight digital channels (MSO) that are optional and adaptable. It allows you to perform voltage measurements on analogue channels with two values simultaneously. This oscilloscope benefits you with different functions such as digital logic, protocol and frequency analysis on a single instrument.Features and Benefits• Allows multiple functions with software licence such as bandwidth upgrade and serial bus analysis • Fanless design for better performance • Low noise due to 8 bit analogue to digital converters • Separate RTC-B1 logic probe suitable for all the RTC1000 oscilloscopes • Logical analyserApplications• Educational institutes • Used by service technicians • R&D troubleshooting • Production testing
