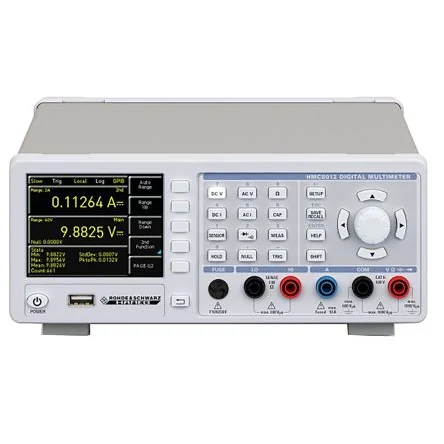

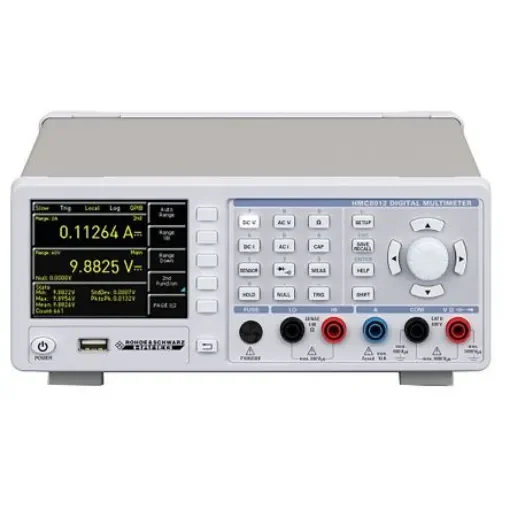

Rohde & Schwarz HMC8012 Bench Digital Multimeter, True RMS, 10A ac Max, 10A dc Max, 750V ac Max

Absolute Maximum Resistance Measurement = 250MO
Temperature Measurement Resolution = 0.1°C
Height = 88mm

HMC8012, HMC8012-G Digital Bench Multimeter. The HCM8012 Benchtop Digital Multimeter offers a 5 3/4 digit display (480000 points) resulting in measurement ranges that are four times higher without any requirement of range switching. It facilitates measurements in the measurement category II with a voltage of up to 600 V, as opposed to the standard of only 300 V in this instrument class. With the HMC8012, current measurements across the entire range can be performed with only one connector. This eliminates any manual switching during range transfers. Also, an integrated watt meter enables power measurement in the DC range. Measurement range: DC to 100 kHz Resolution: 1 µV, 100 nA, 1 mO, 1 pF, 1 Hz, 0.1 °C/F Basic accuracy: 0.015 % (DC) 5-digit display (480 000 counts) Simultaneous display of three measurement functions, e.g. DC + AC + statistics Measurement rate: up to 200 values/s Measurement functions: V (DC), I (DC), V (AC), I (AC), frequency, DC power, resistance (two and four wire), temperature (PT100/PT500/PT1000), capacitance, diode and continuity test Mathematic functions: limit testing, min./max., average, offset, DC power, dB, dBm Data logging to internal memory or USB flash drive in CSV format Interfaces: USB-TMC/-VCP, Ethernet, LXI, IEEE-488 (GPIB) SCPI commands largely compatible with Agilent 34410A (HMC8012-G) HMC8012-G: HMC8012 incl. IEEE-488 (GPIB) interface
