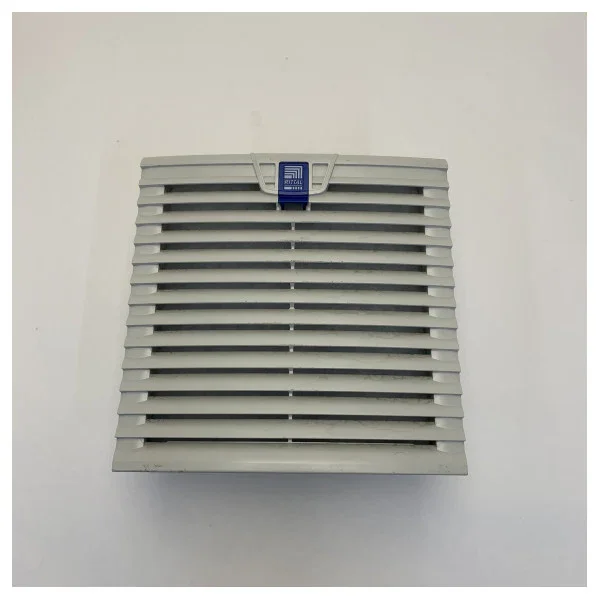

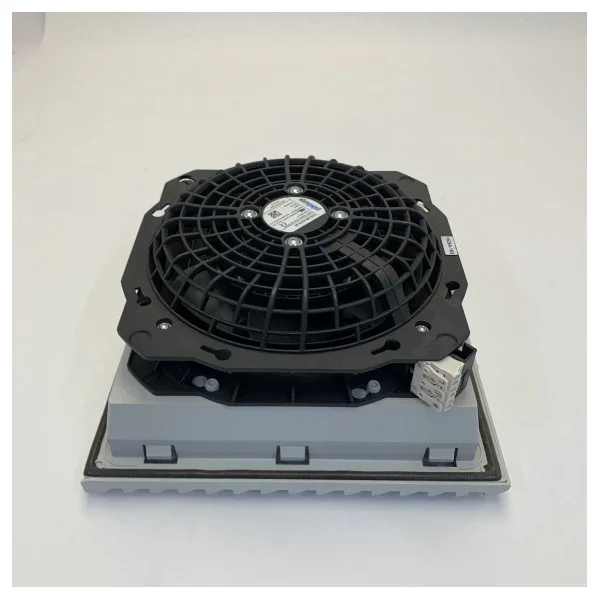

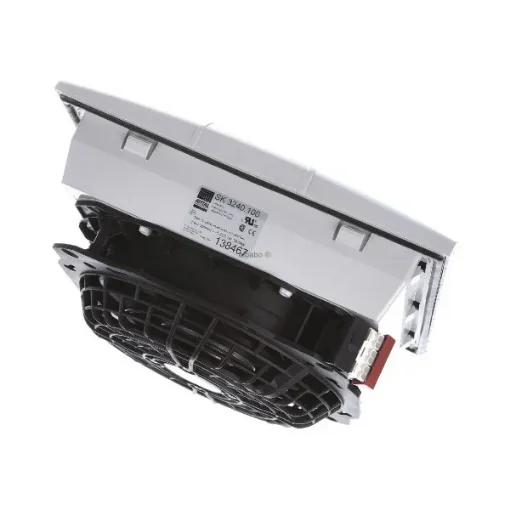

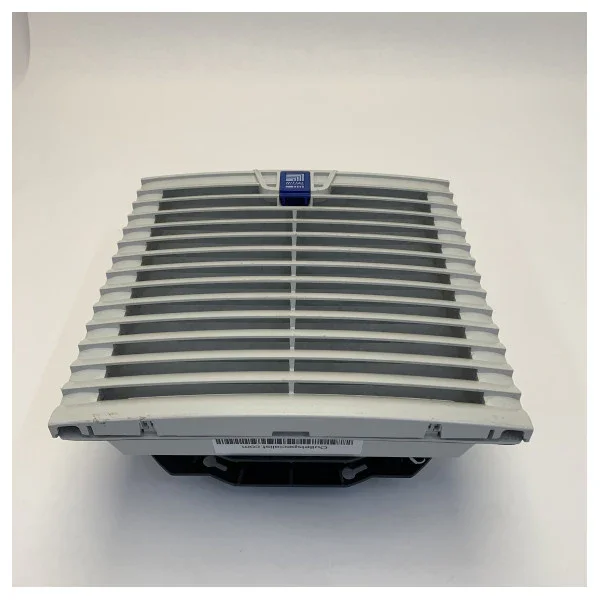

Rittal Ventilation Unit SK 3240.100
Are you looking for an effective and reliable ventilation solution for your enclosure or control cabinet? The Rittal Ventilation Unit SK 3240.100 is the ideal choice to optimally regulate the temperature inside the cabinet, which is essential for the lifespan and reliability of your electronic components.
This ventilation unit provides a powerful airflow and is designed for quick and easy installation without tools, thanks to the practical click mechanism. Its sleek design and unobtrusive grey colour (similar to RAL 7035) provide a professional appearance that perfectly fits any industrial environment.
Features & Specifications
The Rittal Ventilation Unit SK 3240.100 combines high performance with a thoughtful design. Below you will find the main features and specifications, presented in the text:
- Model number: SK 3240.100
- Type: Panel-mounted ventilation unit
- Protection class: The unit offers a protection class of IP54 when mounted, providing protection against dust and splashing water.
- Material: The housing is made of plastic (PC-ABS) and is self-extinguishing according to UL 94 V-0.
- Operating voltage: The fan operates at 230 V, 50/60 Hz (AC).
- Airflow: The free airflow is approximately 115 / 130 cubic metres per hour (at 50/60 Hz).
- Noise level: With a noise level of 44 / 47 decibels (at 50/60 Hz), the unit is relatively quiet in operation.
- Mounting cutout: The required mounting cutout measures 292 x 292 millimetres.
- Dimensions: The total external dimensions are 324 x 324 millimetres.
- Installation: Installation is tool-free thanks to the click mechanism of the clamps.
- Filter mat: The unit comes with a standard filter mat (for example, type G3).
- Colour: Light grey, similar to RAL 7035.
Benefits for your application

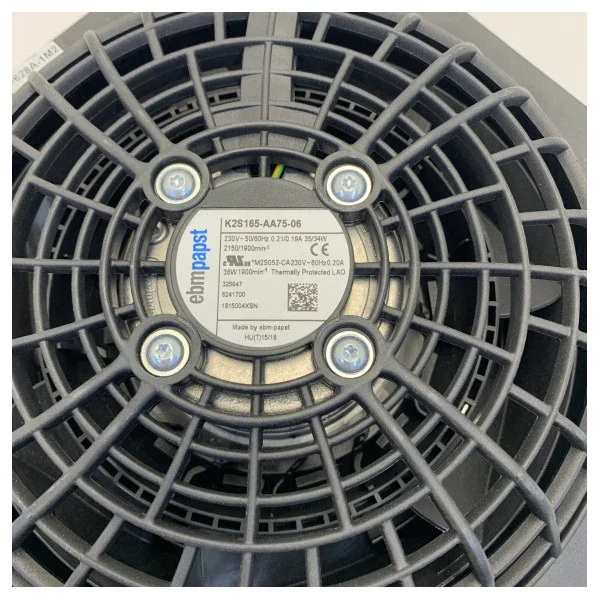

The SK 3240.100 is a robust fan designed for continuous use and a long lifespan. The use of high-quality ball bearings in the fan guarantees this reliability. The simple and quick installation makes this product a time-saving solution for maintaining a healthy ambient temperature within your critical enclosures.
Choose the Rittal SK 3240.100 and ensure optimal climate control and maximum performance of your equipment.
