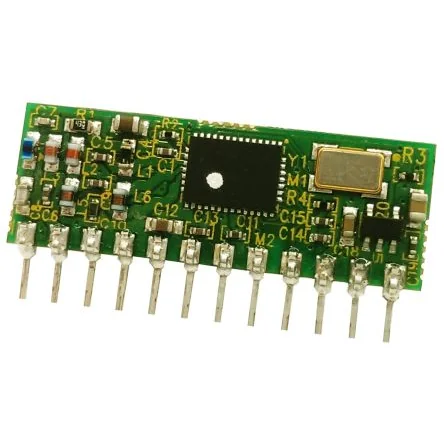

RF Solutions Remote Control Base Station KAPPA-T868, Receiver, 869.5MHz, FM

EN300-220. The KAPPA telemetry module is fully-compatible with RF Solutions' SABRE ; ELITE series of hand-held transmitter modules. KAPPA-T868 Radio Telemetry Module. The KAPPA- T868 module is a sub-1GHz RF telemetry receiver with a UART serial interface. It is set up to receive data from remote-control transmitters with up to 16 buttons. RF Carrier Frequency: 869.5MHz ISM Band RF Power Output: +13dBm Modulation: FSK Receiver Sensitivity: -121dBm OTA Data Rate: 19200bps Range: up to 500m (line of sight) Secure Data Protocol 4 x button-press outputs Serial UART output of all data Connector for Learn/RF Activity LED Learn switch input One-to-One pairing with up to 70 transmitters Transmitter battery status output Self-test mode Power supply: +1.8V to +3.6Vdc Operating temperature range: -20 to +55°C Dimensions: 31.5 x 11 x 2.5mm Applications: Remote control, Digital telemetry RS Product Codes ; 111-0161 111-0161 KAPPA-T868 SIL format ; 111-0162 111-0162 KAPPA-T868-SO SMT format
