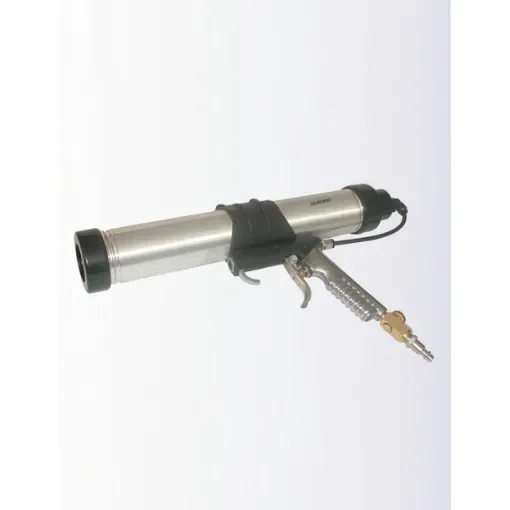

Pneumatic Extrusion Gun
Brand: Lacmé.
Gun for the application of glues, silicones, seals…
Special 400 or 600 ml pouch extrusion gun. It is equipped with an air flow regulator depending on the type of product used. Simple and quick connection (RAC 514).
Advantages
- Large capacity tank
- Lightweight
- Good balance/better grip thanks to its ergonomic handle
Features
- Aluminium tank
- Alloy body
- Progressive trigger
Data
| Tank diameter | 50mm |
| Air consumption | 150 l/min |
| Maximum operating pressure | 5/6 bar |
| Recommended inner hose diameter | 6mm |
| Weight | 0.88kg |
2-in-1 Extrusion Gun
For the application of adhesives, silicones, caulking gaskets, sanitary gaskets, insulation joints for exterior joinery.
Characteristics
| Inner diameter tank | 50 mm |
| Operating pressure | 5-6 bar |
| Average consumption | 150 l / min |
| Compressor recommended | min 12 m3 / h |
| Air connection | 1/4 " |
| Recommended hose | diam. int. 6 mm |
| Weight | 0.88 kg |
| Dimensions | 400 x 230 mm |
Equipment
- Aluminium body with ergonomically centred handle
- Large capacity aluminium tank
- Progressive trigger
- Air flow regulator
- Set of 3 nozzles for bags (up to 600 ml)
Connection
The extrusion gun is delivered with a connection nozzle. The accessories are equipped with quick couplings allowing an immediate connection by snapping into the couplers which equip all the pipes. When "disengaging", the couplers close automatically, thus avoiding the need to operate the valves to which the hoses are connected.
Filtration and Lubrication
Two precautions to be observed when using pneumatic tools.
- Filtration: All pneumatic tools must be supplied with dry air and free of impurities, hence the need to insert a scrubber-regulator between the compressor and the tool, which allows for filtering and adjusting the pressure.
- Lubrication: Pneumatic power tools must be REQUIRED LUBRICATED. It is therefore necessary to insert a lubricator between the tool and the purifier-holder.
