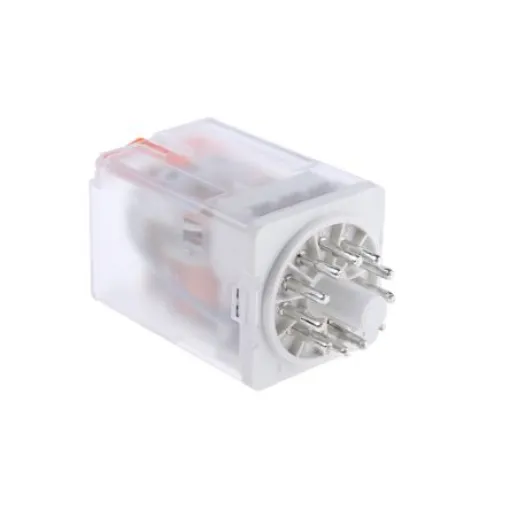

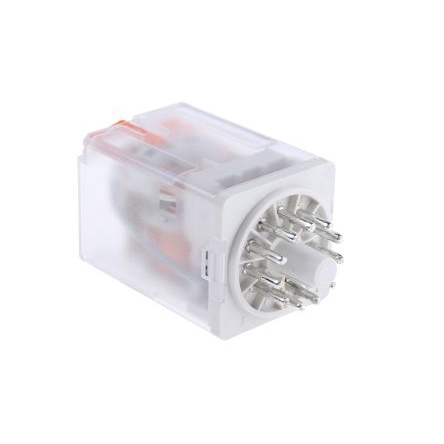

Relpol Plug In Power Relay, 230V ac Coil, 10A Switching Current, 3PDT - R15-2013-23-5230-WTL
Reliable 230V AC power relay with 10A switching current for efficient industrial applications.
Manufacturer part number: R15-2013-23-5230-WTL
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Coil Voltage = 230V ac
Contact Configuration = 3PDT
Mounting Type = Plug In
Switching Current = 10A
Number of Poles = 3
Latching = No
Terminal Type = Plug In
Maximum Switching Voltage AC = 440V
Maximum Switching Voltage DC = 24V dc
Length = 35mm
Coil Resistance = 7080O
Coil Power = 2.8W
Contact Material = Silver Alloy°C
Relpol Miniature Industrial Relays. R2N, R3N and R4N series miniature industrial relays for general applications. All relays are designed for mounting in plug-in sockets with WT features as standard (W - mechanical indicator + T - lockable front test button). Accessories include retainer clips and connection strips. R2N (2 CO), R3N (3 CO) and R4N (4 CO) Miniature dimensions Cadmium-free contacts AC and DC coils Relays may be provided with test buttons (non latching) and plugs RoHS compliant
