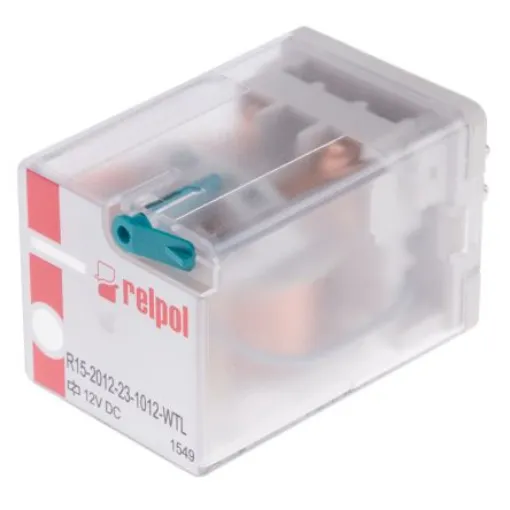

Relpol Plug In Power Relay, 12V dc Coil, 10A Switching Current, DPDT - R15-2012-23-1012-WTL
Reliable 12V DC power relay with 10A switching current for efficient control.
Manufacturer part number: R15-2012-23-1012-WTL
Availability: Out of stock
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Coil Voltage = 12V dc
Contact Configuration = DPDT
Mounting Type = Plug In
Switching Current = 10A
Number of Poles = 2
Latching = No
Terminal Type = Plug In
Maximum Switching Voltage AC = 440V
Maximum Switching Voltage DC = 24V dc
Length = 35mm
Coil Resistance = 110O
Coil Power = 1.5W
Series = R15°C
Relpol Miniature Industrial Relays. R2N, R3N and R4N series miniature industrial relays for general applications. All relays are designed for mounting in plug-in sockets with WT features as standard (W - mechanical indicator + T - lockable front test button). Accessories include retainer clips and connection strips. R2N (2 CO), R3N (3 CO) and R4N (4 CO) Miniature dimensions Cadmium-free contacts AC and DC coils Relays may be provided with test buttons (non latching) and plugs RoHS compliant
