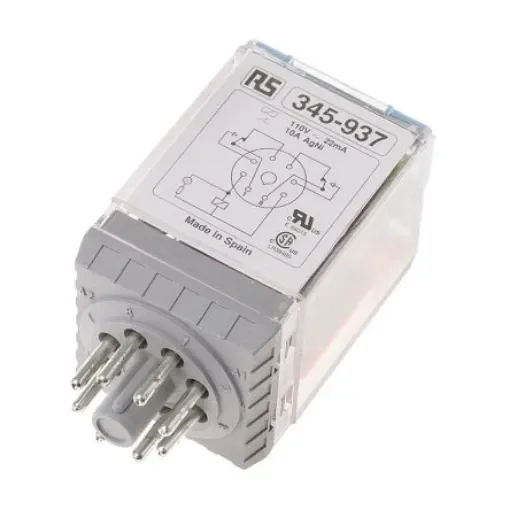

Releco Plug In Power Relay, 115V ac Coil, 10A Switching Current, DPDT - C2-A20X / AC 115V
Releco's 10A Plug In Power Relay with DPDT configuration offers reliable switching for various applications.
Manufacturer part number: C2-A20X / AC 115V
Only Ships to: France, Monaco, Italy For shipping outside these regions, please contact customer support.
Coil Voltage = 115V ac
Contact Configuration = DPDT
Mounting Type = Plug In
Switching Current = 10A
Number of Poles = 2
Series = MRC
Terminal Type = Plug In
Maximum Switching Voltage AC = 250V ac
Maximum Switching Voltage DC = 30V dc
Length = 35mm
Coil Resistance = 1007O
Coil Power = 2.2W
Depth = 35mm
Maximum Switching Power AC = 2.5 kVA
10A Plug-In Relays (8 or 11 Pin). Dual function, colour coded test button push to test or lift to latch Mechanical flag indicator and coil LED as standard Operating Temperature Range -20 to +60°C Contact material silver-nickel (AgNi) H71, W35, D35mm
