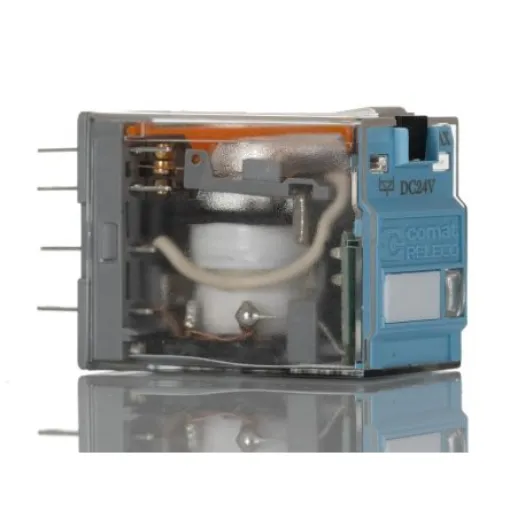

Releco Plug In Latching Power Relay, 24V dc Coil, 5A Switching Current, DPDT - C9-R21N

Releco Miniature Remanence RelayThe Releco miniature remanence relay has two changeover contacts and switching current 5A. It is a DC powered plug-in type latching relay with bi-stable switching. This means that the current switching state is retained, irrespective of the excitation. The contacts can be switched OFF by pulsing the reset input. It has a test button that is colour coded and has dual functions like a push to test or lift to latch. There is a removable marking label fitted to each relay. Its meticulous design makes it particularly suitable for industrial applications and installation engineering. This miniature type relay is ideally suited for applications that need space-saving.Features and Benefits24VDC supply rating coil 9-terminal multipole connector Contact material is silver-nickel (AgNi) DPCO contact configuration Mechanical flag indicator as standard Operating temperature ranging between -40°C and 60°CApplicationsAnti-condensation equipment Car washing equipment Coffee machines Commercial cooking equipment Driers and pumps HVAC Industrial cleaning equipment RefrigerationCertificationsCCC certified CE approval cRUus certified cULus certified EAC certified LROS certified
