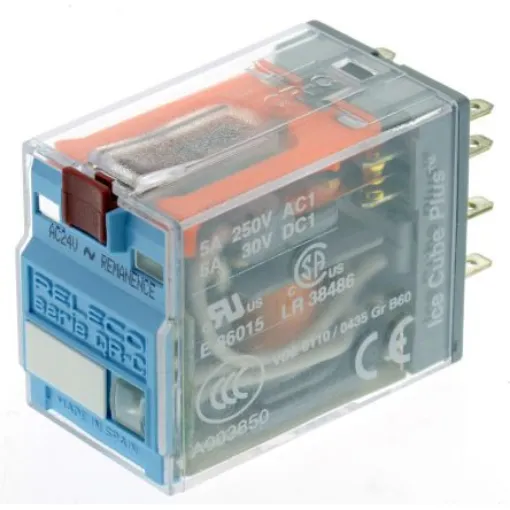

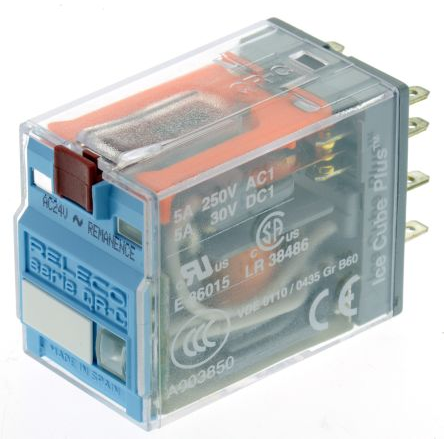

Releco Plug In Latching Power Relay, 24V ac Coil, 5A Switching Current, DPDT - C9-R21 / AC 24 V
Reliable 24V AC latching relay with 5A switching capacity and dual function test button.
Manufacturer part number: C9-R21 / AC 24 V
Availability: Out of stock
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
5A DPCO Latching - C9 Series. Relays have a test button and mechanical flag indicator fitted as standard. The test button is colour coded and dual function, push to test or lift to latch. A removable marking label is fitted to each relay. The maximum switching voltage is 250 V ac and the operating temperature is -40 to +60°C. Contacts remain latched on even after the supply is removed from the 'set' input Contacts are switched off by pulsing the 'reset' input Relay socket also available (see stock no. ; 437-783 437-783 )
