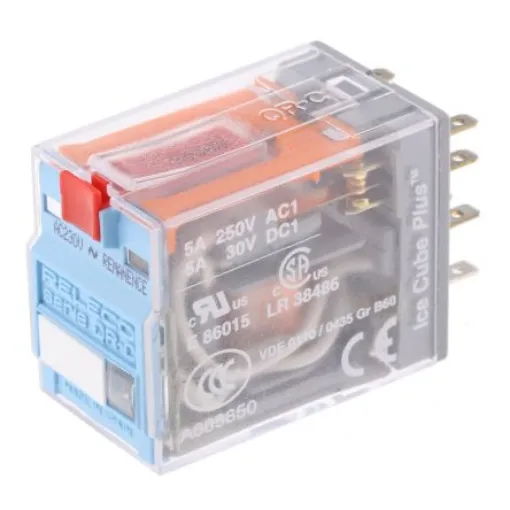

Releco Plug In Latching Power Relay, 230V ac Coil, 5A Switching Current, DPDT - C9R21N230A
Reliable 5A latching power relay with DPDT configuration, ideal for industrial applications.
Manufacturer part number: C9R21N230A
Availability: Out of stock
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Contact Configuration = DPDT
Switching Current = 5A
Terminal Type = Through Hole
Maximum Switching Voltage AC = 250V ac
Maximum Switching Voltage DC = 30V dc
Length = 28mm
Coil Power = 1.2W
Height = 37.5mm
Maximum Switching Power AC = 600 kVA
Releco Miniature Remanence RelayThe Releco miniature remanence relay has two changeover contacts and switching current 5A. It is an AC powered plug-in type latching relay with bi-stable switching. This means that the current switching state is retained, irrespective of the excitation. The contacts can be switched OFF by pulsing the reset input. It has a test button that is colour coded and has dual functions like a push to test or lift to latch. There is a removable marking label fitted to each relay. Its meticulous design makes it particularly suitable for industrial applications and installation engineering. This miniature type relay is ideally suited for applications that need space-saving.Features and Benefits230VAC supply rating coil 9-terminal multipole connector Contact material is silver-nickel (AgNi) DPCO contact configuration Mechanical flag indicator as standard Operating temperature ranging between -40°C and 60°CApplicationsAnti-condensation equipment Car washing equipment Coffee machines Commercial cooking equipment Driers and pumps HVAC Industrial cleaning equipment RefrigerationCertificationsCCC certified CE approval cRUus certified cULus certified EAC certified LROS certified
