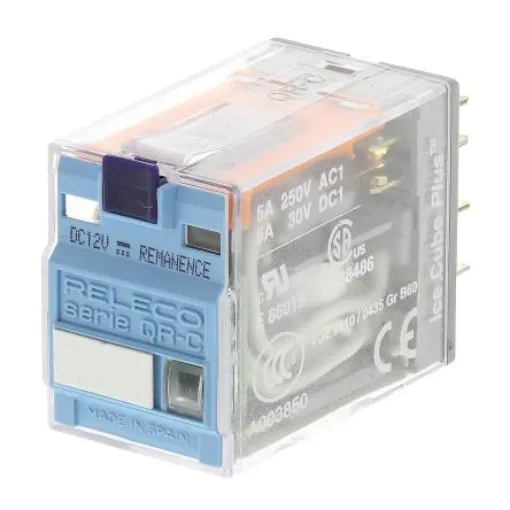

Releco Plug In Latching Power Relay, 12V dc Coil, 5A Switching Current, DPDT - C9-R21 / DC 12 V
Compact 12V DC latching relay with DPDT configuration for reliable switching.
Manufacturer part number: C9-R21 / DC 12 V
Availability: Out of stock
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Contact Configuration = DPDT
Number of Poles = 2
Latching = Yes
Terminal Type = PCB Pin
Length = 21mm
Coil Resistance = 100O
Coil Power = 1.2W
Height = 37.5mm
Maximum Switching Power AC = 600 kVA
5A DPCO Latching - C9 Series. Relays have a test button and mechanical flag indicator fitted as standard. The test button is colour coded and dual function, push to test or lift to latch. A removable marking label is fitted to each relay. The maximum switching voltage is 250 V ac and the operating temperature is -40 to +60°C. Contacts remain latched on even after the supply is removed from the 'set' input Contacts are switched off by pulsing the 'reset' input Relay socket also available (see stock no. ; 437-783 437-783 )
