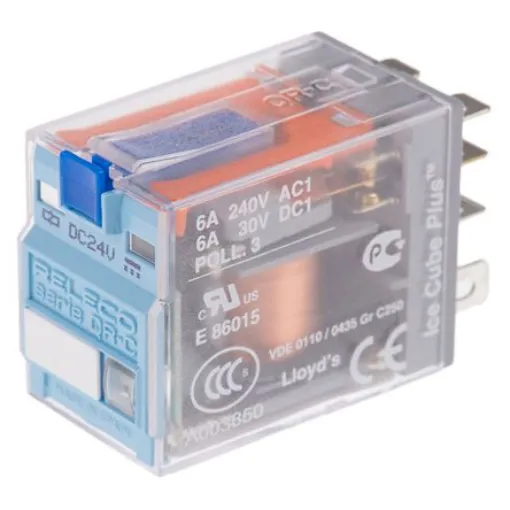

Releco PCB Mount Power Relay, 24V dc Coil, 6A Switching Current, DPDT - C7-T21X / DC 24 V
Reliable 24V DC PCB mount DPDT relay with 6A switching current for efficient performance.
Manufacturer part number: C7-T21X / DC 24 V
Availability: Out of stock
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Coil Voltage = 24V dc
Contact Configuration = DPDT
Mounting Type = PCB Mount
Switching Current = 6A
Number of Poles = 2
Latching = No
Terminal Type = Quick Connect
Maximum Switching Voltage AC = 250V ac
Length = 35mm
Coil Resistance = 594O
Coil Power = 900mW
Series = C7mm
Maximum Switching Power AC = 2.5 kVA
RELECO DPDT RelayThe RELECO C7 series 2-pole PCB mount non-latching relay has a contact configuration of DPDT. It is actuated with a 24VDC coil voltage and 6A switching current. This relay has a test button, LED indicator and mechanical flag indicator. The test button is colour coded and dual function, push to test or lift to latch. A removable marking label is fitted to each relay.Features and BenefitsCoil power is 900mW Coil resistance is 594ohm Quick terminal type Operating temperature ranges between -20°C and 60°C Bifurcated contacts for low level signal switching Suitable for a minimum level of 5mA at 5VDCCertificationsANSI/ESD S20.20:2014 BS EN 61340-5-1:2007
