Releco PCB Mount Power Relay, 24V ac Coil, 30A Switching Current, DPDT - C3-R20 / AC 24 V
Reliable 24V AC PCB mount relay with 30A switching capacity for efficient performance.
Manufacturer part number: C3-R20 / AC 24 V
Availability: Out of stock
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Coil Voltage = 24V ac
Contact Configuration = DPDT
Mounting Type = PCB Mount
Switching Current = 30A
Number of Poles = 2
Latching = No
Terminal Type = Through Hole
Maximum Switching Voltage AC = 250V ac
Length = 35mm
Coil Resistance = 75O
Coil Power = 1.5W
Minimum Operating Temperature = -40°C
Maximum Switching Power AC = 2.5 kVA

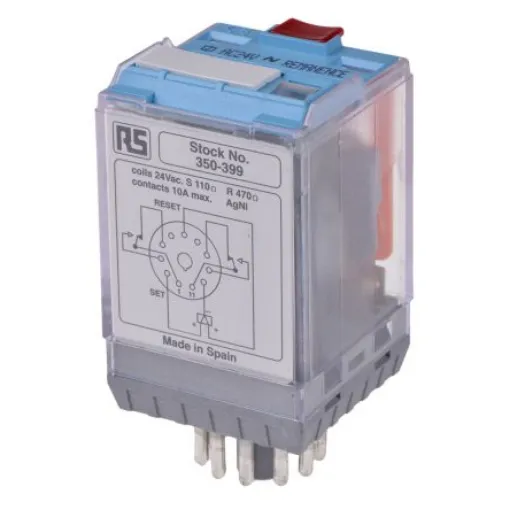

10A 11 Pin Latching Relay. Contacts remain latched on even after the supply is removed for the 'set' input Contacts are switched off by pulsing the 'reset' input DPCO contact configuration Dual function colour coded test button, push to test or lift to latch Mechanical flag indicator as standard Contact material silver-nickel (AgNi) Relay socket also available (see stock no. ; 403-229 403-229 )
