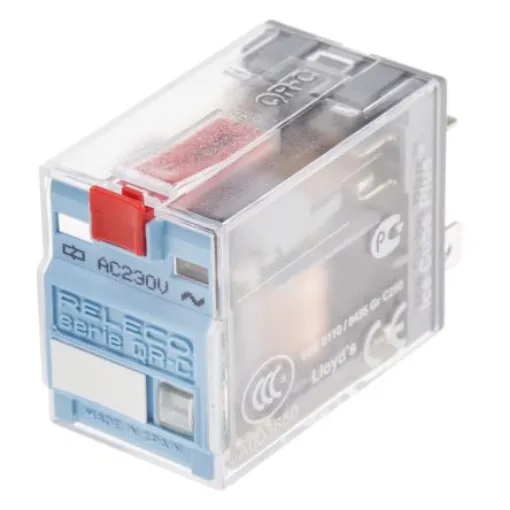

Releco PCB Mount Power Relay, 230V ac Coil, 6A Switching Current, SPST - C7-X10X / AC 230 V
Reliable PCB mount power relay with 6A switching capacity at 230V AC.
Manufacturer part number: C7-X10X / AC 230 V
Availability: Out of stock
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Coil Voltage = 230V ac
Contact Configuration = SPST
Mounting Type = PCB Mount
Switching Current = 6A
Number of Poles = 1
Latching = No
Terminal Type = Through Hole
Maximum Switching Voltage AC = 250V
Maximum Switching Voltage DC = 30V dc
Length = 28mm
Coil Resistance = 14006O
Coil Power = 1.5W
Height = 43mm
Maximum Switching Power AC = 2.5 kVA
10A SPNO High DC - C7 Series. Relays have a test button, LED indication and mechanical flag indicator fitted as standard. The test button is colour coded and dual function, push to test or lift to latch. A removable marking label is fitted to each relay. The maximum switching voltage is 250Vac and the operating temperature is -20 to +60°C. Double make open contact for improved DC switching Suitable for 6A @ 110V DC1 or 1A @220V DC1
