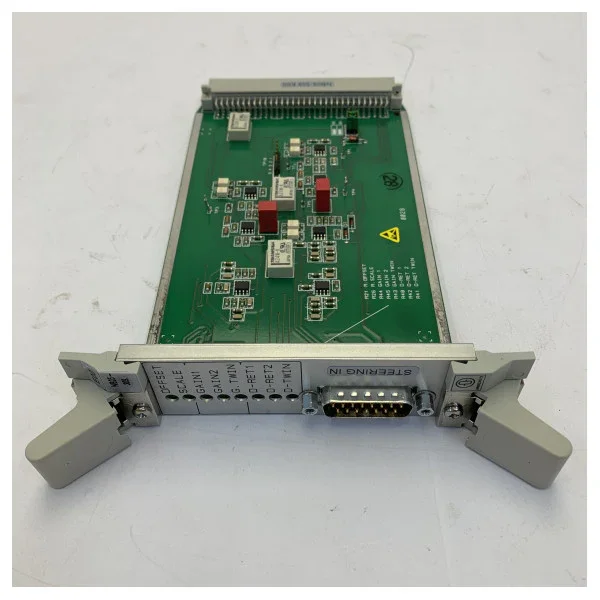

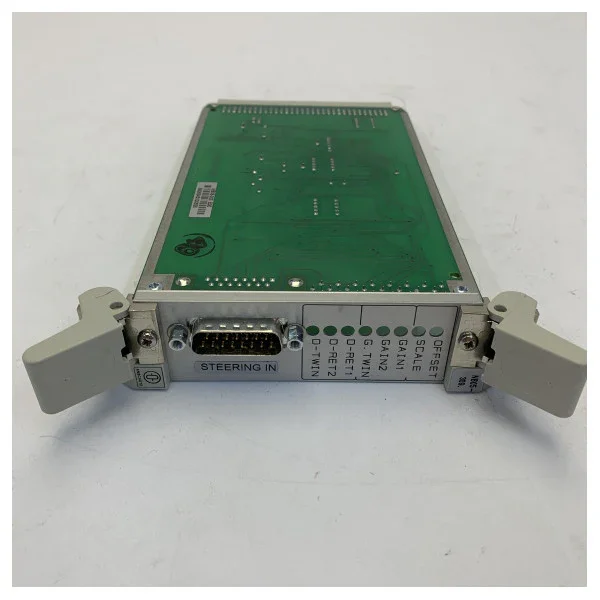

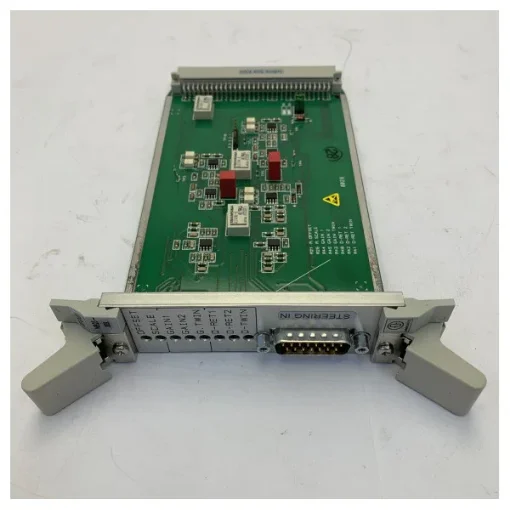

Raytheon Anschutz NB05-309-U3 FU PCB for NP2020 Autopilot
The Raytheon Anschutz NB05-309-U3 is an essential Follow Up (FU) printed circuit board designed for the Anschutz Pilotstar NP2020 autopilot system. This high-quality PCB (Printed Circuit Board) serves as a crucial component for the accurate processing of steering commands and course corrections within your maritime navigation installation.
When your autopilot system shows signs of malfunction or the communication with the control unit falters, replacing the FU PCB is often the most efficient solution to ensure the reliability of your vessel. This printed circuit board is manufactured according to the strict quality standards of Raytheon Anschutz, guaranteeing a long lifespan in demanding maritime environments.
Key Features
- Full Compatibility: Specifically developed for integration into the Raytheon Anschutz NP2020 Autopilot series.
- Reliable Navigation: Ensures a stable connection between the control unit and the steering transmission.
- Industrial Quality: Resistant to the vibrations and temperature fluctuations common at sea.
- Original Part: Direct replacement for part number NB05-309-U3, allowing for smooth installation without modifications.
Specifications and Technical Details
The technical configuration of this printed circuit board is focused on precision and safety. Below you will find the key details that are reflected in your system documentation:
- Manufacturer: Raytheon Anschutz
- Part Number: NB05-309-U3
- Component Type: FU PCB (Follow Up Printed Circuit Board)
- System Application: Suitable for the NP2020 Autopilot / Pilotstar D
- Power Supply Voltage: Stabilized via the main system of the autopilot
- Interface: Analog and digital signal processing for rudder position feedback
- Mounting: Direct plug-and-play mounting in the central electronics unit
Why Choose the NB05-309-U3?
In the world of maritime electronics, precision is everything. A defective printed circuit board can lead to inaccurate course stability, increasing fuel consumption and posing risks. With the Raytheon Anschutz NB05-309-U3, you choose a component that meets all international shipping standards. This component is essential for technicians maintaining Pilotstar systems and looking for parts that are immediately deployable.
