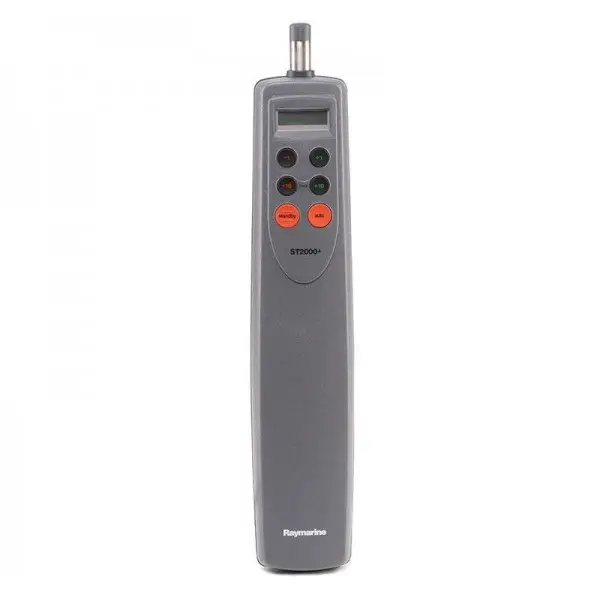

ST2000+ Tiller Pilot - Raymarine
Raymarine automatic pilot for ultra-efficient tiller.
The ST2000+ can support vessels up to 4.5 tonnes of displacement and interfaces in Seatalk or NMEA0183.
The Raymarine ST2000+ automatic pilot is equipped with a 6-button keypad and a 45 mm LCD screen that displays the heading in automatic mode and the setpoint in "standby mode".
The screen has 3 levels of backlighting. With its built-in compass, it works without issue at heel (up to 45°).
The system is ready to be connected to a wind vane and/or a wireless remote control.
Thanks to the integrated NMEA0183 interface, the pilot can utilize data from GPS plotters (and instruments from other manufacturers) and follow a planned course setpoint.
The automatic pilot is also SeaTalk compatible and can be connected to devices from the i40/i50/ST40/ST60+ ranges without the need for an additional box.
The AutoSeastate function helps you keep the boat on the right course.
Automatic tacking is possible with the Autotack function.
A multitude of Raymarine accessories allow you to adapt your tiller automatic pilot to any vessel.
| | ST 2000 + |
| Recommendations | Maximum length: 9.5 mMaximum displacement: 3 T | Maximum length: 11 mMaximum displacement: 4.5 T |
| Max thrust | 57 Kg | 77 Kg |
| Mounting mode | Reversible to port or starboard |
| Dimensions | 450 x 73 x 95 mm |
