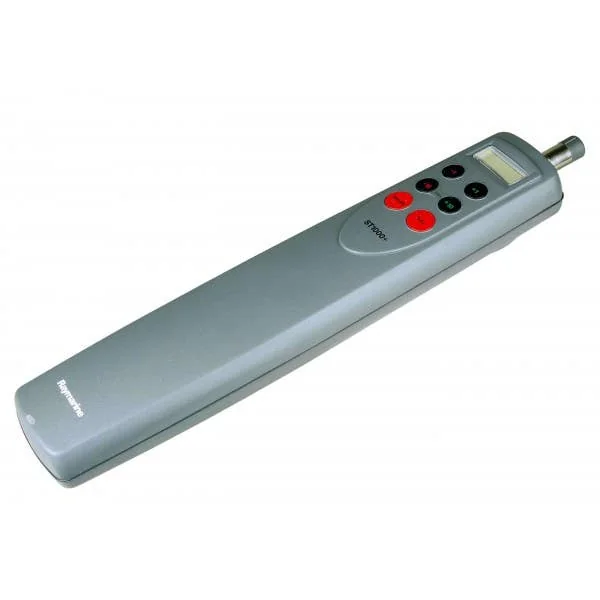

The Raymarine ST1000 Plus Tiller Pilot is a self-contained, removable autopilot system designed for tiller-steered sailboats with a maximum displacement of 3,000 kg (6,600 lbs). This system is ideal for coastal cruising and offers a range of features to enhance sailing convenience and safety.
- AutoTack Mode: Automatically tacks the boat, allowing sailors to focus on handling the sheets during maneuvers.
- AutoSeastate Function: Intelligently maintains the boat's course while conserving power, adapting to changing sea conditions.
- SeaTalk and NMEA0183 Connectivity: Enables integration with other SeaTalk-compatible devices and NMEA0183 instruments, facilitating seamless communication within the onboard network.
- Backlit LCD Display: Features a clear, backlit LCD screen for easy reading of heading and setpoint information, even in low-light conditions.
- Built-in Compass: Equipped with a precision fluxgate compass for accurate heading information.
Technical Specifications:
- Maximum Vessel Displacement: 3,000 kg (6,600 lbs)
- Power Supply: 12-Volt DC systems
- Connectivity: SeaTalk and NMEA0183 interfaces
- Mounting: Quick mounting and connect/disconnect system for easy transition between hand-steering and autopilot control
- Dimensions: Box dimensions are approximately 5 inches in height, 8 inches in width, and 22 inches in length
- Weight: Approximately 5 lbs (2.27 kg)
The ST1000 Plus Tiller Pilot is constructed with durable materials suitable for marine environments, ensuring longevity and reliable performance. Specific material details are not provided in the available sources.
The ST1000 Plus is compatible with Raymarine's SeaTalk network, allowing integration with other SeaTalk-compatible devices. It also supports NMEA0183, enabling connectivity with a wide range of instruments from various manufacturers. This versatility ensures seamless communication and control within the onboard system.
