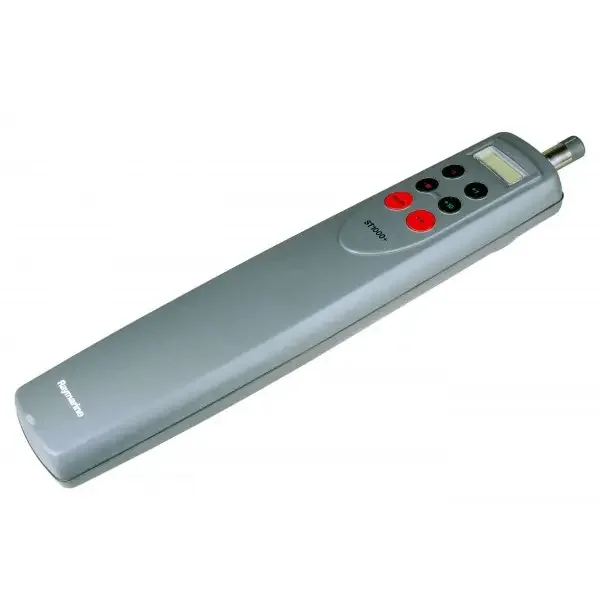

ST1000+ Tiller Pilot - Raymarine
High-performance Raymarine autopilot for a tiller.
The ST1000+ can support vessels up to 3 tonnes of displacement and connects via Seatalk or NMEA.
The Raymarine ST1000+ autopilot is equipped with a 6-button keypad and a 45 mm LCD screen that displays the heading in automatic mode and the setpoint in "standby mode".
The screen has 3 levels of backlighting.
With its built-in compass, it operates smoothly at an angle (up to 45°).
The system is ready to be connected to a wind vane and/or a wireless remote control.
Thanks to the integrated NMEA0183 interface, the pilot can utilize data from GPS plotters (and instruments from other manufacturers) and follow a planned course setpoint.
The autopilot is also SeaTalk compatible and can be connected to devices from the i40/i50/ST40/ST60+ ranges without the need for an additional box.
The AutoSeastate function helps you keep the boat on the right course.
Automatic tacking is possible with the Autotack function.
A multitude of Raymarine accessories allow you to adapt your tiller autopilot to any vessel.
| ST 1000 + | |
| Recommendations | Max length: 9.5 mMax displacement: 3 T | Max length: 11 mMax displacement: 4.5 T |
| Max thrust | 57 Kg | 77 Kg |
| Mounting mode | Reversible to port or starboard |
| Dimensions | 450 x 73 x 95 mm |
