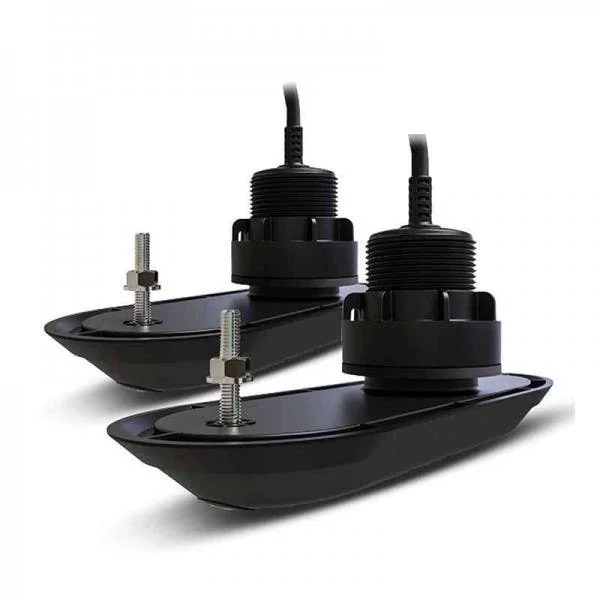

The Raymarine RV-312 and RV-320 are advanced plastic through-hull transducer systems designed to deliver high-resolution sonar imaging for inboard and outboard boats. These transducers integrate seamlessly with Raymarine's Axiom RealVision 3D sonar technology, providing comprehensive underwater coverage and detailed fish targeting capabilities.
- RealVision 3D Sonar Integration: Offers life-like clarity in underwater imaging, enabling easy identification of structures and fish.
- 4-Channel Wide Spectrum CHIRP Technology: Includes DownVision™, SideVision™, high-frequency CHIRP fish targeting, and RealVision 3D™ sonar.
- Built-in Attitude and Heading Reference System (AHRS): Stabilizes sonar imagery by automatically compensating for vessel motion, ensuring clear images even in waves, swells, and during maneuvers.
- Fast Response Water Temperature Sensor: Provides quick and accurate water temperature readings.
- Internal Offset Design: Accommodates hull deadrise angles without the need for fairing blocks.
- Low-Profile Design: Reduces drag and cavitation, suitable for trailered boats.
- Dual Transducer Configuration: Ensures 180° underwater coverage by transmitting and receiving to port and starboard.
Technical Specifications
RV-312
- Deadrise Angle: 1° to 12°
- Tilt Angle: 12°
- Maximum Depths:
- Sonar: 900 ft
- DownVision: 600 ft
- SideVision: 300 ft
- RealVision 3D: 300 ft
- Frequency: RealVision 3D and High CHIRP
- Beam Width:
- RealVision 3D: 180°
- DownVision: 60°
- SideVision: 60°
- Conical: 25°
- Transmit Power: 100W
- Cable Length: 10 meters (2-meter transducer cable + 8-meter extension cable)
- Hull Compatibility: Fiberglass, steel, or aluminum
RV-320
- Deadrise Angle: 13° to 20°
- Tilt Angle: 20°
- Maximum Depths:
- Sonar: 900 ft
- DownVision: 600 ft
- SideVision: 300 ft
- RealVision 3D: 300 ft
- Frequency: RealVision 3D and High CHIRP
- Beam Width:
- RealVision 3D: 180°
- DownVision: 60°
- SideVision: 60°
- Conical: 25°
- Transmit Power: 100W
- Cable Length: 10 meters (2-meter transducer cable + 8-meter extension cable)
- Hull Compatibility: Fiberglass, steel, or aluminum
Materials
- Transducer Housing: Durable plastic suitable for fiberglass, steel, or aluminum hulls.
Compatibility Information
- Compatible Displays: Raymarine Axiom RealVision 3D series and compatible MFDs running LightHouse 3 software.
