The Raymarine i70s System Pack is a comprehensive navigation solution designed for sailors seeking customizable and accurate display of essential data. This multifunction instrument integrates seamlessly with various Raymarine devices and external sensors, offering a versatile and user-friendly experience.
- Customizable Display: The i70s features a 4.1-inch LCD screen with multiple color palette options, allowing users to tailor the display to their preferences.
- Comprehensive Data Views: Supports digital, analog, and graphical displays for depth, speed, wind, GPS, engine, fuel, and environmental data.
- Networking Compatibility: Compatible with SeaTalk NG, NMEA2000, and SeaTalk networks, facilitating easy integration with other Raymarine devices and external sensors.
- AIS Repeater Functionality: Allows viewing of nearby Automatic Identification System (AIS) targets, enhancing situational awareness.
- Low Power Consumption: Operates at a typical power consumption of 1.7 W, ensuring energy efficiency.
Technical Specifications:
- Display:
- Size: 4.1 inches
- Resolution: 320 x 240 pixels
- Brightness: 1,200 cd/m²
- Color Depth: 16-bit color (64k colors)
- Environmental:
- Waterproof Rating: IPx6, IPx7
- Relative Humidity: 93% Max.
- Storage Temperature Range: -30°C to 70°C (-22°F to 158°F)
- Operating Temperature Range: -25°C to +55°C (-13°F to +131°F)
- Power:
- Operating Voltage Range: 9 V DC to 16 V DC (protected up to 32 V DC)
- Current: 143 mA
- Nominal Supply Voltage: 12 V DC
- Power Consumption: 1.7 W
- LEN (NMEA 2000 Load Equivalency Number): 3
- Data Connections:
- Connections: 1 x SeaTalkng® connector
Materials:
- Display: Optically bonded glass for enhanced brightness and contrast.
- Housing: Durable, weather-resistant materials suitable for marine environments.
Dimensions:
- Instrument: 110 x 115 x 30 mm
Compatibility Information:
- Networking: Supports SeaTalk NG, NMEA2000, and SeaTalk networks.
- Transducer Connectivity: Compatible with the iTC-5 instrument transducer converter for integration with analog depth, speed, and wind sensors.

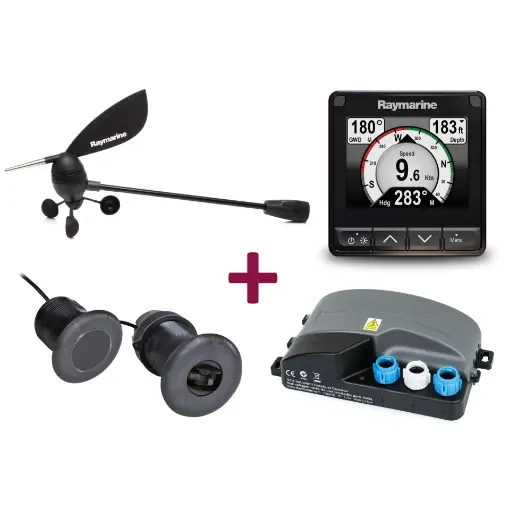

Package Contents:
- 1 x i70s multifunction instrument display
- 1 x Mast-mounted wind sensor with small blades
- 1 x Through-hull speed transducer (DST800)
- 1 x Through-hull depth transducer (P17)
- 1 x ITC-5 instrument transducer converter
- 2 x SeaTalk NG termination resistors
- 1 x 5-way SeaTalk NG connector
- 1 x SeaTalk NG backbone cable (3 m)
- 1 x SeaTalk NG power cable (2 m)
- 1 x Protective cover for the instrument
- 1 x Surface or pedestal mounting kit
- 1 x User manual
