Key Features:
- High CHIRP Sonar: Delivers high-resolution sonar imagery for enhanced fish targeting and bottom detail.
- 25° Conical Beam: Provides a wide coverage area for effective scanning.
- Integrated Seawater Temperature Sensor: Monitors water temperature for improved fishing conditions assessment.
- Depth Range: Supports depths up to 900 feet (274 meters).
- Compatibility: Directly connects to Raymarine Element S chartplotters.
Technical Specifications:

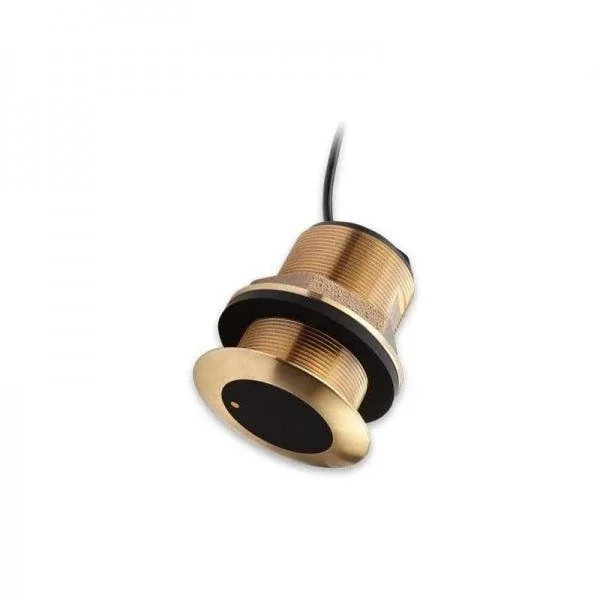

- Mounting Style: Through-hull flush mount.
- Deadrise Angles: Accommodates hulls with deadrise angles between 0° and 5°.
- Hull Materials: Suitable for fiberglass and metal hulls.
- Cable Length: Includes a 10-meter (33 feet) cable.
- Beam Width: 25° conical beam.
- Frequency Range: High CHIRP sonar operation centered around 200 kHz.
Materials:
- Housing Material: Bronze.
- Transducer Element: Urethane.
Dimensions:
- Transducer Housing: Low-profile design suitable for flush mounting.
- Cable Length: 10 meters (33 feet).
Compatibility Information:
- Chartplotter Compatibility:
- Direct connection to Raymarine Element S series chartplotters.
- For Axiom Pro S and Axiom 2 Pro S series, use the A80490 adapter cable.
- For Element HV series, use the A80559 adapter cable.
- Hull Compatibility: Designed for fiberglass and metal hulls with deadrise angles between 0° and 5°.
Additional Details:
- Installation: Simple through-hull installation with a low-profile design that eliminates the need for a fairing block.
- Performance: Offers excellent high-speed performance, making it suitable for various boating activities.
