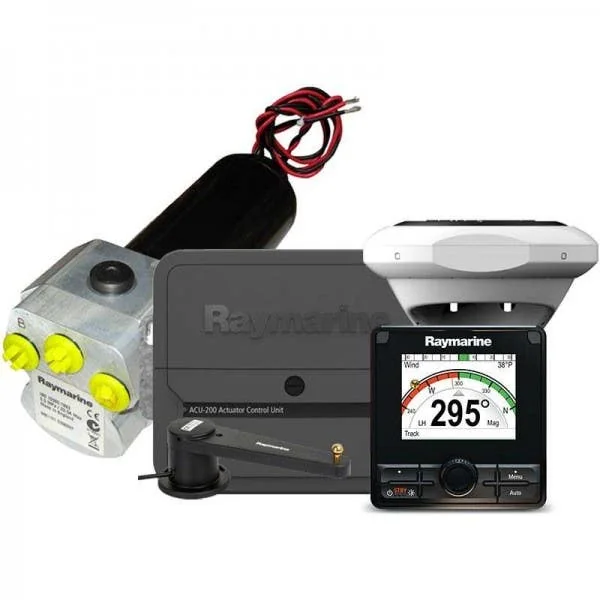

The Raymarine EV-200 Power Pilot Autopilot Pack is a comprehensive autopilot solution tailored for motorboats equipped with hydraulic steering systems. This system offers precise and reliable autopilot control, enhancing navigation efficiency and safety.
Key Features:
- Evolution Ai Technology: Utilizes intelligent 9-axis heading sensor technology to adapt to changing sea conditions and vessel dynamics, ensuring precise course-keeping.
- Hydro-Balance™ Technology: Compensates for elasticity in hydraulic steering systems, preventing steering oscillation and drive-unit hunting.
- Plug & Play Installation: Simplifies setup with automatic self-configuration, eliminating the need for complex calibration.
- Fuel Efficiency: Enhances steering accuracy, promoting fuel savings and reducing travel time to destinations.
Technical Specifications:
- EV-1 Sensor Core:
- Dimensions: 140 mm (5.5 in) diameter; 35 mm (1.4 in) depth (excluding mounting enclosure); 95 mm (3.8 in) depth (including wall bracket).
- Weight: 0.29 kg (0.64 lbs).
- Power Supply: 12 V DC (powered by SeaTalkng system).
- Power Consumption: 30 mA (from SeaTalkng system).
- Sensors: 3-axis digital accelerometer, 3-axis digital compass, 3-axis gyro digital angular rate sensor.
- Waterproof Rating: IPX6.
- ACU-200 Actuator Control Unit:
- Dimensions: 285 mm (11.2 in) width; 211.5 mm (8.3 in) height; 64.5 mm (2.5 in) depth.
- Weight: 2.2 kg (4.84 lbs).
- Power Supply: 12 V or 24 V DC.
- Drive Current Output: Maximum continuous 15 A at supply voltage.
- Drive Clutch Output: Up to 2.0 A continuous, selectable between 12/24 V.
- Power Consumption (Standby): 300 mA (12/24 V) from main power supply; 20 mA (12 V) from SeaTalkng bus.
- SeaTalkng Power Output: 3 A at 12 V (fuse protected at 3 A).
- Waterproof Rating: Drip resistant.
- Type 1 Hydraulic Pump:
- Compatibility: Suitable for hydraulic steering systems with capacities between 80 cc and 230 cc (4.9 in³–14 in³).
- Maximum Stall Pressure: 50 bar (750 psi).
- Peak Flow Rate (No Load): 1000 cc/min (67 in³/min).
Materials:
- EV-1 Sensor Core: Encased in a rugged, fully sealed enclosure meeting IPX6 and IPX7 waterproofing standards.
- ACU-200 Actuator Control Unit: Constructed with durable materials suitable for marine environments.
- Type 1 Hydraulic Pump: Designed for compatibility with various hydraulic steering systems.
Compatibility Information:
- Hydraulic Steering Systems: Compatible with systems having steering cylinder capacities between 80 cc and 230 cc (4.9 in³–14 in³).
- SeaTalkng Network: Integrates seamlessly with Raymarine's SeaTalkng network for data and power distribution.
